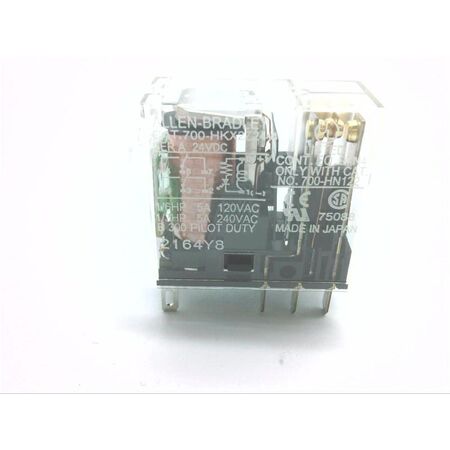

Slim Line Relay with LED Pilot Light | DPDT Configuration | Space-Saving Design | by Allen-Bradley
The Slim Line Relay with LED Pilot Light is perfect for industrial control systems and automation equipment. Featuring a DPDT configuration and plug-in blade-style terminals, this relay ensures easy wiring and secure mounting. The built-in LED pilot light provides a clear operational status indicator, making it an ideal choice for machinery control panels and electrical switching applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Rating: 8 A
- Frequency: 50/60 Hz
- Coil Voltage: 24 VDC
- Contact Configuration: Double Pole Double Throw (DPDT)
- Mounting Style: Open style, mountable
- Terminals: Plug-in blade-style
- Indicator: On/off LED pilot light
- Dimensions (H x L x W): 50mm x 60mm x 30mm
- Weight: 0.1 kg
Key Features
- Slim line design for space-saving installation
- Plug-in blade-style terminals for easy wiring
- Retainer clip with sockets for secure mounting
- On/off indicator for operational status
- Double pole double throw (DPDT) configuration
- LED pilot light for visual indication
- Open style mountable relay
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Industrial control systems
- Automation equipment
- Electrical switching applications
- Machinery control panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LED pilot light reduces energy consumption compared to traditional indicators
- Durable design extends product life, reducing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HKX2Z244 Slim Line Relay is available for immediate purchase, ideal for industrial and automation control applications.
