Slim PCB Relay 6A 1 Changeover | 24V DC Coil | Compact Design by NHP
Slim PCB relay with 6A current and 24V DC coil—ideal for automation and control panels. Built for reliable switching, with compact design for easy PCB mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

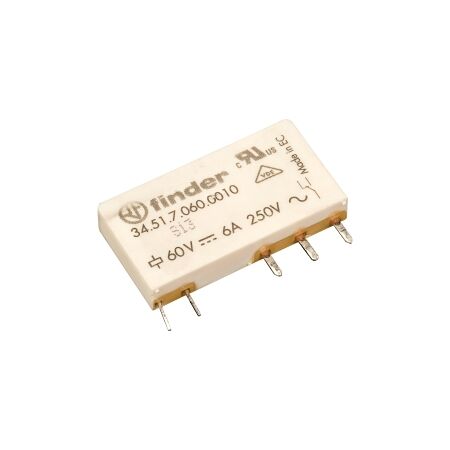

Product Name/Title: Finder 34 Series Slim Printed Circuit Board Relay 6A 1 Changeover 24V DC Coil
Brand: NHP
SKU: 345124VDC
Alternatively Known As: PCB Relay, Switching Relay, Finder Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 400 V
- Number of Contacts: 1 Changeover
- Rated Switching Power at AC-1: 1500 VA
- Rated Switching Power at AC-15 (230 V): 300 VA
- Breaking Capacity at DC-1 (30 V): 6 A
- Breaking Capacity at DC-1 (110 V): 0.2 A
- Control Supply Voltage (DC): 24 V
- Electrical Life: 60000 cycles
- Mechanical Life: 10000 cycles
- Operating Temperature: -40 to 85 °C
- Dimensions (H x L x W): 28mm x 15mm x 5mm
- Weight: 0.1 kg
Key Features
- Compact design suitable for PCB mounting.
- Mono stable operation with a single changeover contact.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 34 Series Slim Printed Circuit Board Relay is available now for immediate purchase, ideal for various industrial and commercial applications.
