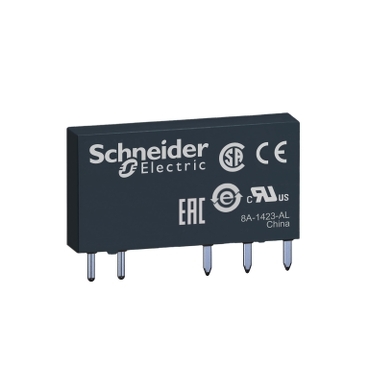

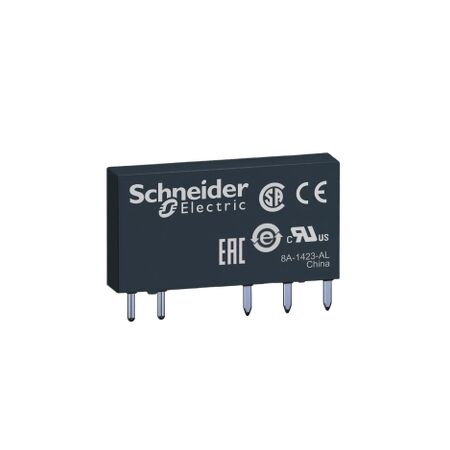

Slim Relay 1C/O 6A Low Sw 60VD | 1 Changeover Contact | Low Level Switching | by Clipsal
The Slim Relay 1C/O 6A Low Sw 60VD is designed for efficient electrical switching in industrial automation and control panels. With a 6A switching capacity and a low-level switching capability, this relay ensures reliable performance in building management systems. Its compact design allows for space-saving installation, making it ideal for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Slim Relay 1C/O 6A Low Sw 60VD | 1 Changeover Contact | Low Level Switching | by Clipsal
Brand: Clipsal
SKU: SCHRSL1GB4ND
Alternatively Known As: ['Harmony RSL Slim Relay', 'Clipsal SCHRSL1GB4ND', 'Slim Interface Plug-in Relay', '1C/O 6A 60VDC Relay']
Technical Specifications
- Contact configuration: 1 C/O (SPDT)
- Switching capacity: 6A at 250V AC/30V DC
- Coil voltage: 60V DC
- Coil consumption: 0.9W
- Dielectric strength: 4000V AC between coil and contacts
- Mechanical durability: 10,000,000 operations
- Electrical durability: 100,000 operations at rated load
- Operating temperature: -40°C to +70°C
- Mounting: Plug-in (DIN rail with socket)
- Series: Harmony RSL
- Dimensions (H x L x W): 28mm x 78mm x 6.2mm
- Weight: 0.1 kg
Key Features
- Slim interface plug-in relay for space-saving installation
- 1 changeover (C/O) contact configuration
- Rated for 6A switching capacity
- Low level switching capability
- 60V DC coil voltage
- Part of Harmony RSL series for reliable performance
Professional Installation Requirements
- Installation by a licensed electrician is recommended to ensure compliance with Australian standards and safe operation.
Applications
- Industrial automation panels
- Building management systems
- Control cabinets
- Switchboards
- General electrical switching applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Compact design reduces material usage and panel space requirements
- Energy-efficient operation with low coil consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Slim Relay 1C/O 6A Low Sw 60VD (SCHRSL1GB4ND) is available for immediate purchase. Ideal for industrial automation, control panels, and building management systems.
