Trade Discount 17%

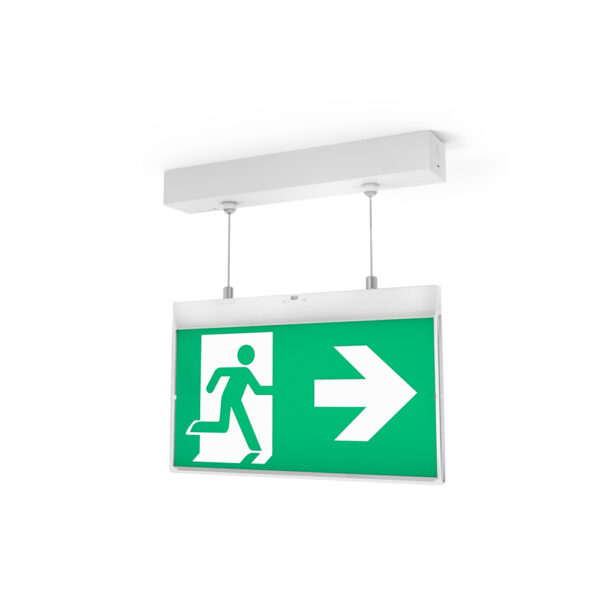

Ektor Slimblade Core Surface Pendant Exit Light | IP20 Rated | 90 Minutes Emergency Duration | 24m Viewing Distance | by Ektor
The Ektor Slimblade Core Surface Pendant Exit Light is designed for reliable emergency exit lighting in commercial and public spaces. With an IP20 rating, a 90-minute emergency duration, and a 24m viewing distance, this light ensures safety and visibility during power outages. Its white polycarbonate body and PMMA diffuser make it both durable and aesthetically pleasing, perfect for suspended installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Pendant Exit Sign, Emergency Exit Light, LED Exit Sign Pendant
Technical Specifications
- IP Rating: IP20
- Maximum Wattage: 2.6 W
- Input Voltage: 230Vac (216Vac - 253Vac range in Australia)
- Input Frequency: 50 Hz
- Standby Power: 2.3 W
- Driver Type: Fixed output, integrated
- Emergency Classification: C0:D5, C90:E3.2
- Emergency Output Power: 1000 mW
- Emergency Duration: 90 minutes
- Decal Size: 300 x 150 mm
- Working Temperature Range: 0 to 40 °C
- Installation Type: Suspended
- Body Material: Polycarbonate
- Diffuser Material: PMMA
- Dimmable: No
- Wiring Type: Re-wireable terminal block (2 pin)
- Replacement Battery Code: 13972
- Product Design Life: 6 years
- Dimensions (H x L x W): 150mm x 50mm x 300mm
- Weight: 1.2 kg
Key Features
- Fixed output integrated driver included
- Maintained emergency mode with 90 minutes duration
- Viewing distance of 24 meters
- Mechanical IP20 rated
- White polycarbonate body with PMMA diffuser
- Non-dimmable
- Re-wireable terminal block (2 pin)
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical and safety standards.
Applications
- Commercial buildings for emergency exit lighting
- Public spaces requiring maintained emergency lighting
- Suspended installation environments
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low standby power consumption of 2.3W reduces energy usage
- Long product design life of 6 years minimizes waste and replacement frequency
Warranty Information
5 years return to base warranty for commercial use.
Available Now
The Ektor Slimblade Core Surface Pendant Exit Light 24M is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
