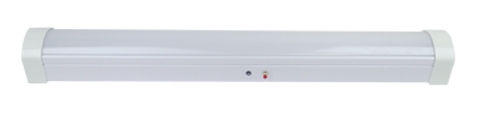

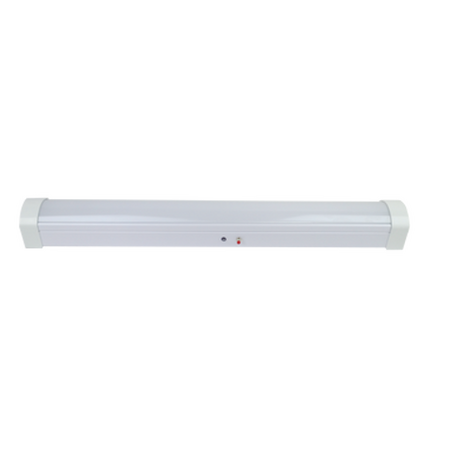

Slimline Emergency LED Batten | 240V | Tri-Colour | Sensor Ready by Lawell Lightning

BRAND: Lawel Lighting
SKU: LWB1803-E
$103.70 List price: $135.10
+ −
30 Days Return Delivery Options
Slimline emergency LED batten with 240V input and tri-colour temperature—ideal for commercial and industrial spaces. Built for reliable emergency lighting, with optional sensor socket for enhanced functionality.

Product Name/Title: 2ft Slimline Emergency Batten

Brand: Lawell Lightning

SKU: LWB1803-E

Alternatively Known As: ['Emergency LED Batten', 'Slimline Emergency Batten', 'Tri-Colour Emergency Batten', 'LED Batten with Sensor Socket', 'Lawell Emergency Batten']

Technical Specifications
  • Input Voltage: 240V
  • Wattage: 20W (normal) / 6W (emergency)
  • Lumen Output: 2000lm
  • Operating Mode: Maintained
  • Classification: C0=D63 C90=D20
  • Battery: 1800mAh
  • Beam Angle: 100˚
  • Colour Temperature: Tri-colour (3000K, 4000K, 5700K)
  • Terminal Block: 10mm
  • Sensor Options: Yes (optional microwave sensor MS01)

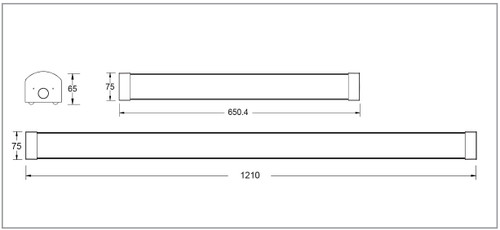

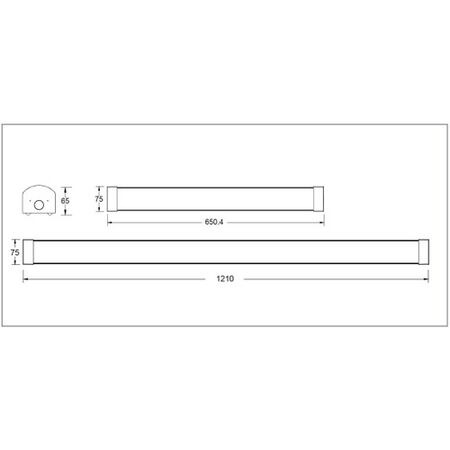

  • Dimensions (H x L x W): 65mm x 650mm x 75mm
  • Weight: 2 kg
Key Features
  • 20W/40W power selectable (4 foot only)
  • Safety chain for easy installation
  • Large terminal block for fast installation and maintenance
  • Wide body covers junction boxes and accommodates heat-generating components
  • Optional microwave sensor (MS01)
  • Tri-colour selectable (3000K, 4000K, 5700K)
  • Maintained emergency operation
  • Sensor socket for added functionality
Professional Installation Requirements
  • Installation by a licensed electrician is required to ensure compliance with Australian standards and optimal safety.
Applications
  • Commercial buildings: offices, warehouses, retail spaces
  • Industrial facilities: factories, workshops
  • Public areas: car parks, corridors, stairwells
  • Residential: garages, basements, utility rooms
Standards & Compliance
  • Complies with AS/NZS 2293.3 for emergency escape lighting and exit signs
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption
  • Long lifespan minimizes waste and maintenance
  • Selectable power and colour temperature for optimized energy use
Warranty Information

3 years warranty against manufacturing defects.

Available Now

Available for immediate purchase. Ideal for commercial, industrial, and public spaces requiring reliable emergency lighting with sensor capability.

B180xE%20Datasheet.pdf (B180xE_Datasheet.pdf, 282 Kb) [Download]

B1803E%20ies.pdf (B1803E_ies.pdf, 162 Kb) [Download]

B1802E%20ies.pdf (B1802E_ies.pdf, 343 Kb) [Download]
