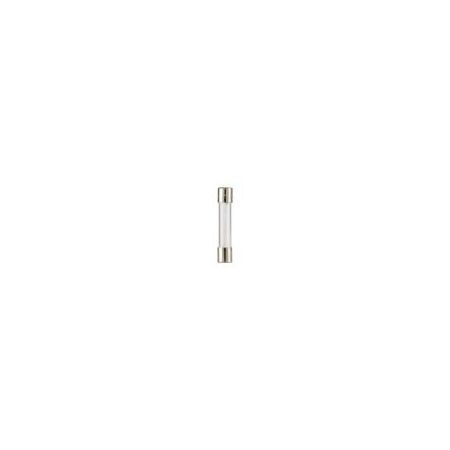

Small Dimension Fuse 3A | 250 Vac | Fast-Acting Glass Tube | Non-Indicating by Eaton

BRAND: Eaton
SKU: AGC-3-R
$0.60 List price: $0.70
+ −
30 Days Return Delivery Options
Protect your electronic circuits with this small dimension fuse rated at 3A and 250 Vac. Featuring a fast-acting glass tube construction and nickel-plated brass end caps, it's ideal for general electrical equipment protection and ensures safety against overloads.

Product Name/Title: Small Dimension Fuse 3A | 250 Vac | Fast-Acting Glass Tube | Non-Indicating by Eaton

Brand: Eaton

SKU: AGC-3-R

Alternatively Known As: Bussmann AGC Fuse, Fast Acting Glass Tube Fuse, Electronic Circuit Fuse

Technical Specifications
  • Amperage Rating: 3 A
  • Voltage Rating: 250 Vac, 32 Vdc (self certified)
  • Interrupt Rating: 100 AIC at 250 Vac, 10 kAIC at 125 Vac
  • Response Time: 60 min at 135%, 120 sec at 200%
  • Material: Glass tube with nickel-plated brass end caps
  • Connection: Ferrule end x ferrule end
  • Fuse Indicator: Non-indicating
  • Type: Electronic
  • Dimensions (H x L x W): 6.35mm x 31.75mm x 6.35mm
  • Weight: 0.0018 kg
Key Features
  • Time-delay fuse for protection against short circuits and overloads
  • Fast-acting glass tube construction with nickel-plated brass end caps
  • Non-indicating fuse type
  • Interrupt rating of 100 AIC at 250 Vac and 10 kAIC at 125 Vac
  • Response time: 60 minutes at 135% rated current, 120 seconds at 200% rated current
  • RoHS compliant and CE marked
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure proper fuse selection and safe operation.
Applications
  • Electronic circuits requiring fast-acting fuse protection
  • General electrical and electronic equipment protection
Standards & Compliance
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • RoHS compliant ensuring reduced hazardous substances
  • Durable construction reduces waste by extending fuse life
Warranty Information

Standard manufacturer warranty applies. Please refer to Eaton's warranty policy for details.

Available Now

The Eaton Buss Small Dimension Fuse AGC-3-R is available for immediate purchase, ideal for electronic circuit protection applications.

Product specifications (skuPage.AGC-3-R.pdf, 47 Kb) [Download]
