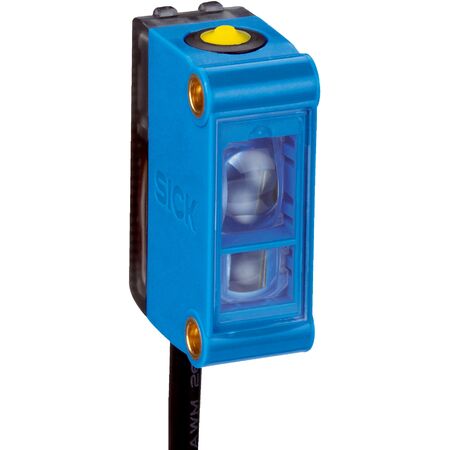

Small LED Proximity Sensor | PNP Output | IP67 Rated | 15 kHz Switching Frequency | by SICK
The Small LED Proximity Sensor is designed for precise object detection in industrial automation, featuring a PNP output and an impressive switching frequency of 15 kHz. With an IP67 rating for dust and water resistance, this compact sensor is perfect for manufacturing lines, quality control systems, and robotics applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Ripple: ≤ 5 V pp
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Jitter: 15 µs
- Switching output: PNP, HIGH ≤ 2 V, LOW approx. 0 V
- Output current max: 50 mA
- Teach-in mode: 2-point static/dynamic and proximity to mark
- Retention time: 28 ms non-volatile memory
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: ABS
- Optics material: PMMA
- Connection: Cable with M12 male 4-pin connector, 0.2 m
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Enclosure rating: IP67
- Shock load: IEC 60068 compliant
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design measuring 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- White LED light source with round light spot of 2 mm diameter
- Teach-in button for 2-point teach-in static/dynamic and proximity to mark
- High switching frequency of 15 kHz and fast response time of 32 µs
- PNP switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Cable with M12 male 4-pin connector, 0.2 m length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration according to industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable ABS housing and PMMA optics reduce waste through long service life
- IP67 rating ensures protection against dust and water, reducing failure rates
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KTM-MP31182P sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
