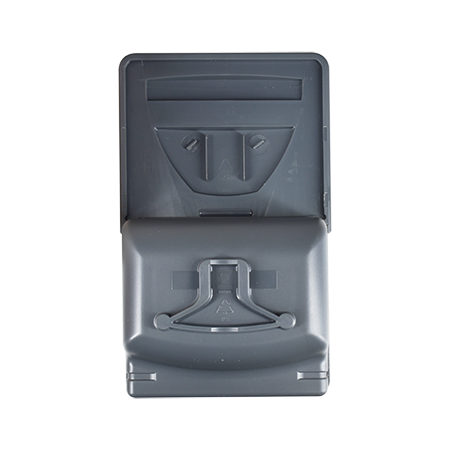

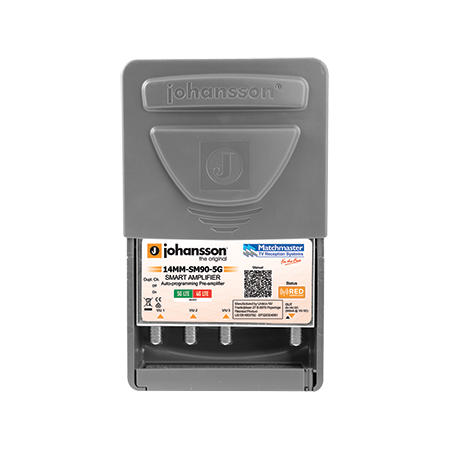

Smart Masthead Amplifier | Auto Programming | 3 Inputs | 90dBµV AGC by Matchmaster
Smart masthead amplifier with auto programming and 3 inputs—ideal for enhancing TV signal reception. Built for residential and commercial use, with 90dBµV AGC controlled output for consistent signal strength.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Inputs: 3
- LTE rejection: 4G/5G (>CH51) with >40dB attenuation
- Channel plan: VHF BIII + UHF
- Automatic channel plan selection
- Output power: 90dBµV AGC controlled
- Frequency range: 174-862MHz
- Noise figure: 7dB
- LTE band re-use: L2 = CH52-69 (694-862MHz) switchable On/Off
- Adjacent channel isolation: >35dB
- RED Compliance: Yes
- Power: 12V/300mA DC over Coax, 9V minimum to 18V maximum
- Power supply: External (sold separately)
- Operating temperature: -20 to +50°C
- Dimensions (H x L x W): 50mm x 115mm x 120mm
- Weight: 0.3 kg
Key Features
- Smart Masthead Amplifier with fully automatic channel scan and process function upon double power cycle start-up
- Scans all channels, amplifies weak signals while maintaining strong channels
- AGC controlled 90dBµV output power for balanced and stable signal
- SAW filters for LTE (4G/5G) protection on all inputs
- Processes adjacent channels from multiple antennas effectively
- Wide input power range from 9V to 18V DC
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical safety standards.
Applications
- Residential TV antenna systems
- Commercial TV distribution networks
- Areas requiring signal amplification and LTE interference rejection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Improves signal quality reducing the need for multiple amplifiers and lowering energy consumption
- Supports efficient power usage with wide input voltage range
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Matchmaster Smart Masthead Amplifier SM90-5G is available now for immediate purchase. Ideal for residential and commercial TV antenna systems requiring reliable signal amplification with LTE interference protection.
