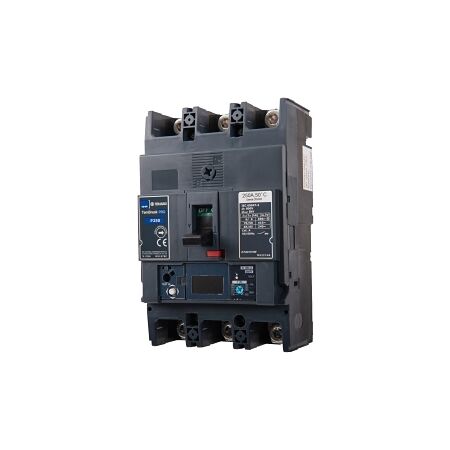

Smart MCCB 250 Frame 125kA 3P 160A | Electronic Release | Energy Metering by NHP
Smart MCCB with 250 frame and 125kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise protection, with electronic release and integrated energy metering.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 160 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 85 kA
- Trip Curve: LSI
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 64-160 A
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Integrated Communication Function: Yes
- Communications Protocol: Modbus TCP
- Mechanical Life: 20000 cycles
- Electrical Life: 10000 cycles
- Dimensions (H x L x W): 165mm x 127mm x 129mm
- Weight: 2.4 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated energy metering and communication functions.
- High short-circuit breaking capacity of 125 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety and compliance.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Energy-efficient design reduces power loss and enhances system reliability.
Warranty Information
Standard warranty applies, please check with the supplier for details.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 125kA 3P 160A Smart Electronic is available for immediate purchase, ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
