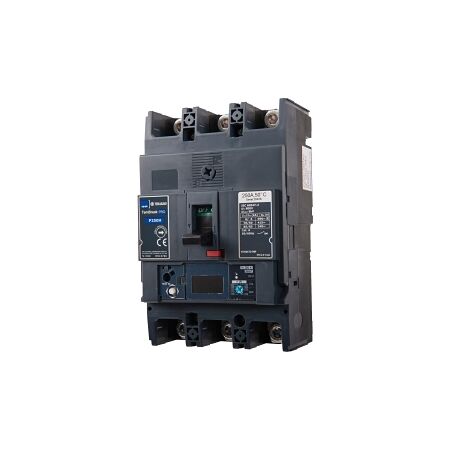

Terasaki TemBreak PRO MCCB 250 Frame 70kA 3P 100A Smart Electronic

Smart MCCB 250 Frame 70kA 3P 100A | Electronic Release | Modbus TCP by NHP

BRAND: NHP

SKU: P250H3100SE

$3,968.60 List price: $5,269.70

+ −

30 Days Return Delivery Options

Smart MCCB with 250 frame size and 70kA breaking capacity—ideal for industrial and commercial power distribution. Built for enhanced protection, with electronic release and Modbus TCP communication for smart monitoring.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 70kA 3P 100A Smart Electronic

Brand: NHP

SKU: P250H3100SE

Alternatively Known As: Terasaki Circuit Breaker, MCCB 250A, Smart Electronic Breaker

Technical Specifications

Rated Current: 100 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Trip Curve: LSIG
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment Range: 40-100 A
Instantaneous Protection Adjustment Range: 300-1500 A
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 6 kA
Rated Impulse Withstand Voltage: 8 kV
Mechanical Life: 30000 cycles
Electrical Life: 10000 cycles
Pollution Degree: 3
Rated Surrounding Temperature: 50 °C
Dimensions (H x L x W): 165mm x 95.5mm x 105mm
Weight: 1.5 kg

Key Features

Electronic release trip unit for enhanced protection.
Integrated earth fault protection and energy metering function.
Modbus TCP communication capability for smart monitoring.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Energy-efficient design reduces power loss and enhances operational efficiency.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 250 Frame 70kA 3P 100A Smart Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.

Non-Returnable & Non-Cancellable

P250H3100SE-AU-TBP-MCCB-250AF-Datasheet.pdf (P250H3100SE-AU-TBP-MCCB-250AF-Datasheet.pdf, 1,094 Kb) [Download]
