Smart MCCB 250A 3P | 36kA Breaking Capacity | Modbus TCP by NHP
Smart MCCB with 250A rated current and 36kA breaking capacity—ideal for industrial and commercial power distribution. Built for enhanced protection, with Modbus TCP communication for smart monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

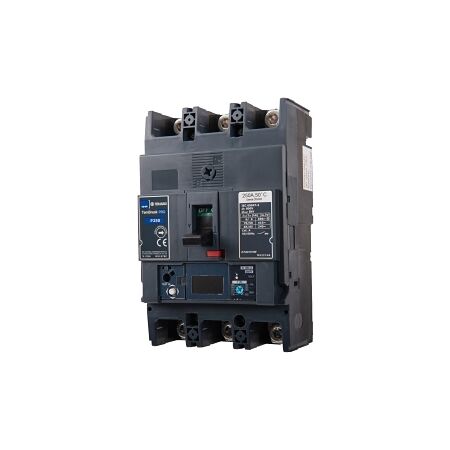

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 36kA 3P 250A Smart Electronic
Brand: NHP
SKU: P250F3250SE
Alternatively Known As: MCCB, Circuit Breaker, Smart Circuit Breaker, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Short Circuit Breaking Capacity: 36 kA
- Trip Curve: LSIG
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Integrated Communication Function: Yes
- Mechanical Life: 30,000 cycles
- Electrical Life: 10,000 cycles
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 165mm x 95.5mm x 105mm
- Weight: 1.5 kg
Key Features
- Electronic release trip unit for enhanced protection.
- Integrated earth fault protection and energy metering function.
- Modbus TCP communication capability for smart monitoring.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for circuit breakers.
Environmental Benefits
- Energy-efficient design reduces power loss and enhances system reliability.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 36kA 3P 250A Smart Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
