Smart MCCB 400 Frame 110kA 3P 250A | Electronic Release | Earth Fault Protection by NHP

BRAND: NHP

SKU: P400S3250SE

$8,562.00 List price: $11,369.20

+ −

30 Days Return Delivery Options

Smart MCCB with 250A rated current and electronic release—ideal for industrial and commercial power distribution. Built for enhanced protection, with integrated earth fault protection and Modbus TCP communication.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 110kA 3P 250A Smart Electronic

Brand: NHP

SKU: P400S3250SE

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Smart Circuit Breaker

Technical Specifications

Rated Current: 250 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Short Circuit Breaking Capacity: 110 kA
Type of Protection: Electronic release
Frame Size Rating: 400 A
Rated Insulation Voltage: 800 V
Integrated Earth Fault Protection: Yes
Rated Frequency: 50-60 Hz
Power Loss: 33.3 W
Mechanical Life: 15000 cycles
Electrical Life: 6000 cycles
Cable Cross Section Range: 35-400 mm²

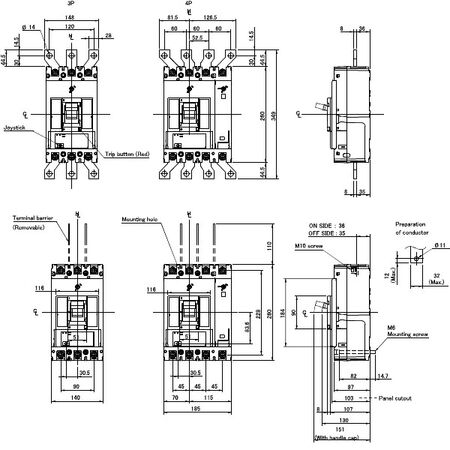

Dimensions (H x L x W): 260mm x 145mm x 140mm
Weight: 4.3 kg

Key Features

Electronic release trip unit for enhanced protection.
Integrated earth fault protection and energy metering function.
Modbus TCP communication capability for smart integration.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Manufacturing facilities, power distribution systems
Commercial: Large buildings, data centers, and critical infrastructure

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed to operate efficiently in a wide range of temperatures and humidity levels.

Warranty Information

Standard warranty applies, please check with the manufacturer for details.

Available Now

The Terasaki TemBreak PRO MCCB 400 Frame 110kA 3P 250A Smart Electronic is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

P400S3250SE-AU-TBP-MCCB-400AF-Datasheet.pdf (P400S3250SE-AU-TBP-MCCB-400AF-Datasheet.pdf, 1,255 Kb) [Download]
