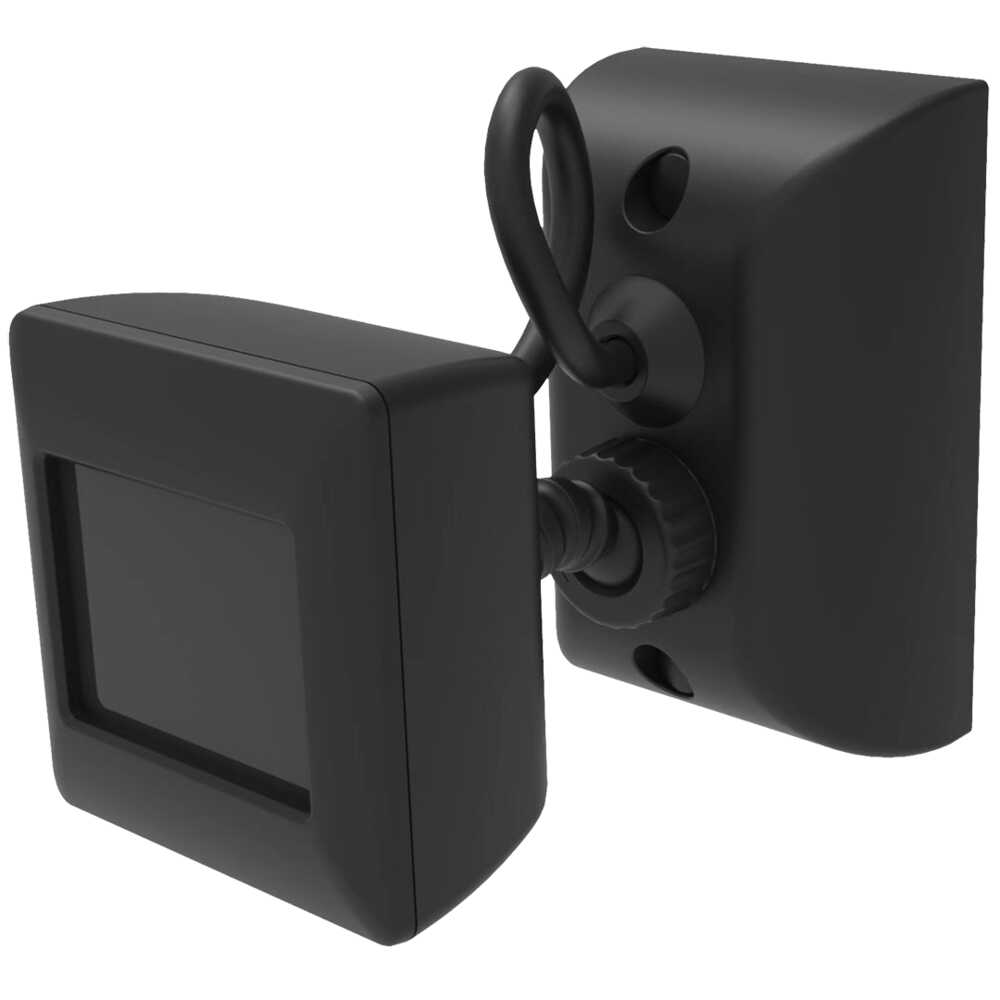

Smart Outdoor PIR Sensor | 240V | 110° Detection | IP66 Rated by SAL

BRAND: SAL
SKU: SMS862WF/BK/BTAM
$133.40 List price: $138.20
+
Smart outdoor PIR sensor with 240V input and 110° detection angle—ideal for homes and commercial spaces. Built for enhanced security, with IP66 rating and adjustable settings via PIXIE PLUS App.

Product Name/Title: PIXIE SMART PIR SENSOR OUTDOOR - BLACK

Brand: SAL

SKU: SMS862WF/BK/BTAM

Colour: BLACK

Alternatively Known As: Smart PIR Sensor, Outdoor Motion Sensor, Wireless PIR Sensor

Technical Specifications
  • Input Voltage: 240V
  • Maximum Load (LED): 500W
  • Maximum Load (Halogen): 2000W
  • Detection Angle: 110°
  • Detection Range: Up to 12 metres
  • Height for Detection: 1.8 - 2.5m
  • Dimmable: No
  • Sensor Type: PIR
  • Dimensions (H x L x W): 100mm x 100mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Smart home PIR sensor with override functions and PE cell mode.
  • Surface mount design with IP66 rating for outdoor use.
  • Adjustable sensitivity, hold time, and brightness threshold via dials and PIXIE PLUS App.
  • Detection angle of 110° and range of up to 12 metres.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, gardens, outdoor areas
  • Commercial: Retail spaces, parking lots, outdoor facilities
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The PIXIE SMART PIR SENSOR OUTDOOR - BLACK is available now for immediate purchase. Ideal for enhancing security in outdoor residential and commercial spaces.

Installation Sheets (Installation_Instruction_SMS862WFWHTAM_Print_RL1.3_20230817.pdf, 11,327 Kb) [Download]

Data Sheet (18563-218b205fd62c77e9dc026714445b99cf.pdf, 402 Kb) [Download]
