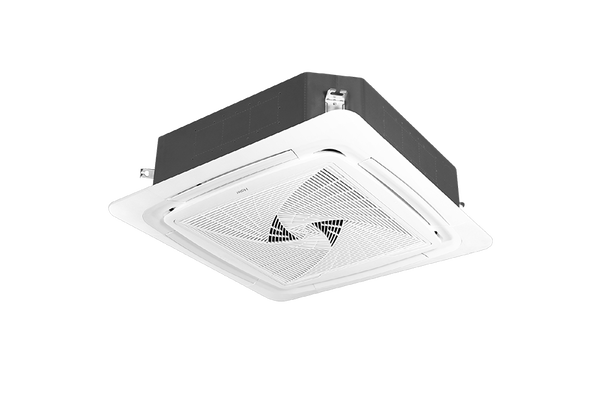

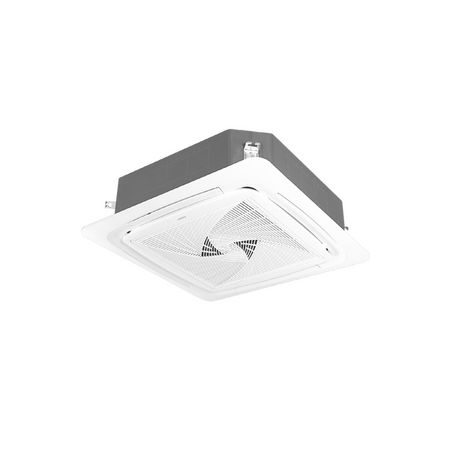

Smart Power 12.5kW Cassette Air Conditioner | 360° Airflow | Inverter Control & Auto Restart | R32 by Haierhome
Experience efficient climate control with the Smart Power 12.5kW Cassette Air Conditioner, featuring 360° airflow and inverter control for optimal performance. Ideal for commercial spaces, it offers effective heating and cooling solutions with a sleek design and energy-efficient R32 refrigerant.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Smart Power 12.5kW Cassette Air Conditioner | 360° Airflow | Inverter Control & Auto Restart | R32 by Haierhome
Brand: Haierhome
SKU: ABH125KP5FA-SET
Alternatively Known As: 12.5kW Cassette Air Conditioner, R32 Cassette AC, Commercial Ceiling Cassette AC, Haier Cassette Air Conditioner
Technical Specifications
- Cooling capacity: 12kW
- Heating capacity: 13kW
- COP: 3.25
- EER: 3.16
- HSPF-RES (Hot/Average/Cold): 3.337/3.105/2.800
- HSPFCOM (Hot/Average/Cold): 3.325/3.182/2.849
- TCSPF-COM (Hot/Average/Cold): 4.36/4.404/4.679
- TCSPF-RES (Hot/Average/Cold): 4.088/3.806/3.915
- Airflow rates: 530/435/375/295 m³/h
- Indoor sound pressure SPL: 47-34 dBA
- Outdoor sound power SWL: 69 dBA
- Outdoor sound pressure SPL: 52 dBA
- Working temperature cooling: -20°C to +24°C
- Working temperature heating: -10°C to +50°C
- Power supply: 220-240V, 50Hz, 26A
- Pipe size gas: 15.9mm
- Pipe size liquid: 9.52mm
- Maximum pipe length: 75m
- Dimensions (H x L x W): 288mm x 840mm x 840mm
- Weight: 132 kg
Key Features
- 360° airflow for uniform air distribution
- Auto restart function
- Auto swing-up and down louvers
- Blue fin coils with hydrophilic anti-corrosion coating
- Twin rotary compressor with inverter control
- Concealed LED display
- Condensate pump included
- Electronic expansion device
- Fresh air connection available
- Infrared remote control
- MEPS approved energy efficiency
- DC motor type
- Factory charged with 2.9kg R32 refrigerant
- Standard panel model PB-950KB
Professional Installation Requirements
- Professional installation by a licensed HVAC technician is required to ensure proper setup, refrigerant handling, and compliance with safety standards.
Applications
- Commercial ceiling cassette air conditioning for offices, retail, and hospitality spaces
- Effective heating and cooling solution for medium to large indoor areas
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60335 – Safety of Household and Similar Electrical Appliances (implied for HVAC)
Environmental Benefits
- Energy-efficient DC inverter technology reduces power consumption
- Use of R32 refrigerant with lower global warming potential
- Blue Fin anti-corrosion coating extends product lifespan reducing waste
Warranty Information
5 years parts and labour warranty.
Available Now
The Haierhome Smart Power 12.5kW Cassette R32 air conditioning system is available for immediate purchase, ideal for commercial ceiling cassette applications requiring efficient heating and cooling.
