Trade Discount 23%

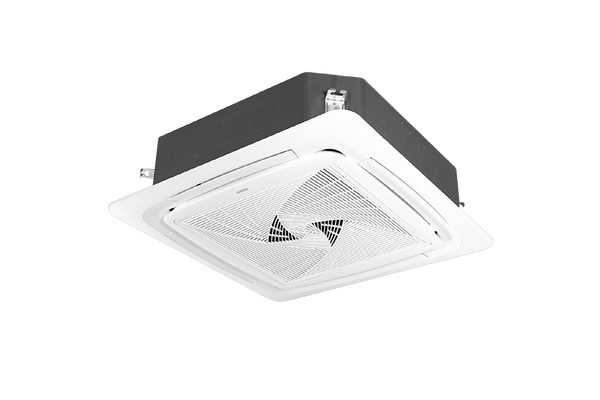

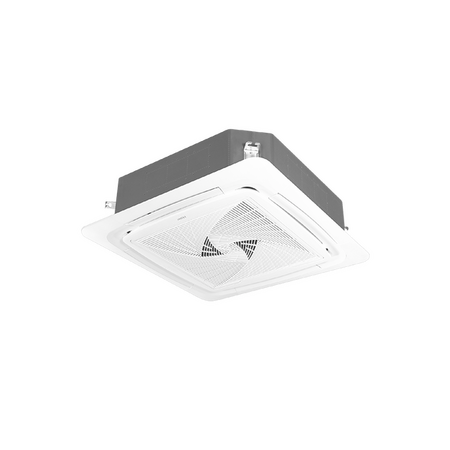

Smart Power 14.0kW Cassette Air Conditioner | 360° Airflow | Auto Restart & Inverter Control | R32 by Haierhome
Experience optimal comfort with the Smart Power 14.0kW Cassette Air Conditioner, featuring 360° airflow and an auto restart function—ideal for commercial spaces. Built for efficient heating and cooling, with inverter control for energy savings and a sleek design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Smart Power 14.0kW Cassette Air Conditioner | 360° Airflow | Auto Restart & Inverter Control | R32 by Haierhome
Brand: Haierhome
SKU: AB140S5SR1FA-SET
Alternatively Known As: 14kW Cassette Air Conditioner, Commercial Ceiling Cassette AC, R32 Cassette Air Conditioner, Haier Cassette AC 14kW
Technical Specifications
- Cooling capacity: 14kW
- Heating capacity: 14.5kW
- COP: 3.58
- EER: 3.42
- HSPF-RES (Hot/Average/Cold): 3.975/3.681/3.337
- HSPFCOM (Hot/Average/Cold): 3.969/3.787/3.497
- TCSPF-COM (Hot/Average/Cold): 4.639/4.672/4.955
- TCSPF-RES (Hot/Average/Cold): 4.358/4.056/4.161
- Airflow rates: 545/460/385 m³/h
- Indoor sound pressure SPL: 50/48/44 dBA
- Outdoor sound power SWL: 70 dBA
- Outdoor sound pressure SPL: 54 dBA
- Working temperature cooling: -15℃ to +50℃
- Working temperature heating: -20℃ to +24℃
- Power supply: Single phase, 220-240V, 50Hz
- Pipe length maximum: 70m
- Pipe size gas: 19.05 mm (¾ inch)
- Pipe size liquid: 9.52 mm (⅜ inch)
- Dimensions (H x L x W): 288mm x 840mm x 840mm
- Weight: 133 kg
Key Features
- 360° airflow for even air distribution
- Auto restart function
- Auto swing-up and down for optimal airflow direction
- Blue fin coils with hydrophilic coating for corrosion resistance and quick water drainage
- Twin rotary compressor with inverter control for energy efficiency
- Concealed LED display
- Condensate pump included
- DRED (Demand Response) ready
- Electronic expansion device
- Fresh air connection available
- Infrared remote control
- MEPS approved
- DC motor type
- Refrigerant factory charge of 2.9kg R32
- Standard panel model PB-950QB
Professional Installation Requirements
- Professional installation by a licensed HVAC technician is required to ensure compliance with electrical and safety standards and optimal system performance.
Applications
- Commercial ceiling cassette air conditioning for offices, retail, hospitality, and commercial spaces
- Effective heating and cooling solution for indoor environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient DC inverter technology reduces power consumption
- Use of R32 refrigerant with lower global warming potential
- Blue fin anti-corrosion coating extends product lifespan reducing waste
Warranty Information
5 years parts and labour warranty.
Available Now
The Haierhome Smart Power 14.0kW Cassette R32 air conditioning system is available for immediate purchase, ideal for commercial ceiling cassette air conditioning applications.
