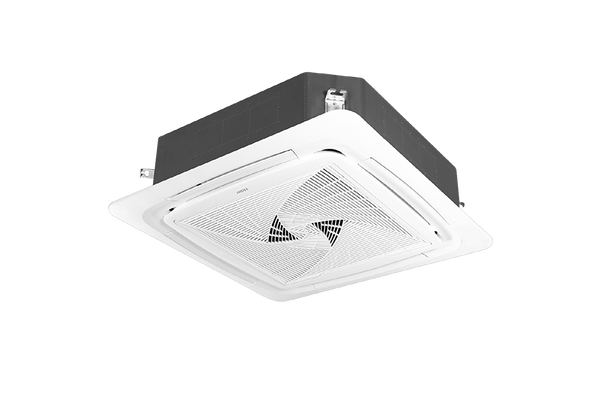

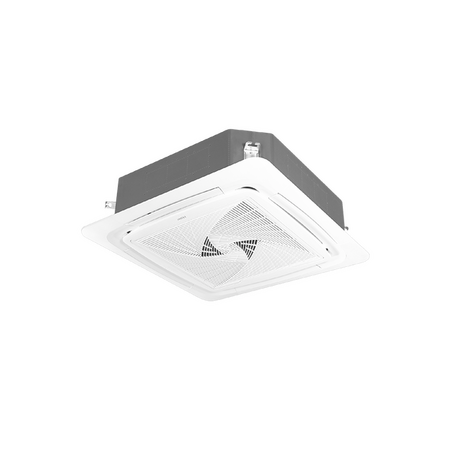

Smart Power Cassette Air Conditioner | 10.5kW Cooling | 360° Airflow & Inverter Technology | R32 by Haierhome
Experience efficient climate control with the Smart Power 10.5kW cassette air conditioner, featuring 360° airflow and inverter technology. Ideal for commercial spaces, it provides effective heating and cooling while ensuring energy efficiency with R32 refrigerant.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Smart Power Cassette Air Conditioner | 10.5kW Cooling | 360° Airflow & Inverter Technology | R32 by Haierhome
Brand: Haierhome
SKU: ABH105KN5FA-SET
Alternatively Known As: Commercial Ceiling Cassette AC, 10.5kW Cassette Air Conditioner, R32 Cassette AC, Haier Cassette Air Conditioner
Technical Specifications
- Cooling capacity: 10kW
- Heating capacity: 11.5kW
- COP: 3.54
- EER: 3.16
- HSPF-RES (Hot/Average/Cold): 4.436/3.956/3.528
- HSPFCOM (Hot/Average/Cold): 4.447/4.16/3.784
- Star-Cool (Hot/Average/Cold): 2.5/2.0/2.5
- Star-Heat (Hot/Average/Cold): 2.5/2.0/2.0
- TCSPF-COM (Hot/Average/Cold): 4.598/4.668/4.979
- TCSPF-RES (Hot/Average/Cold): 4.284/3.953/4.083
- Airflow rates: 490/105/335/295 m³/h
- Indoor sound pressure SPL: 45-34dBA
- Outdoor sound power SWL: 68dBA
- Outdoor sound pressure SPL: 52dBA
- Working temperature cooling: -20°C to +24°C
- Working temperature heating: -15°C to +50°C
- Power supply: 220-240V, 50Hz, 20A
- Dimensions (H x L x W): 288mm x 840mm x 840mm
- Weight: 115 kg
Key Features
- 360° airflow for uniform air distribution
- Auto restart function
- Auto swing-up and down for adjustable airflow direction
- Blue fin coils with hydrophilic anti-corrosion coating
- Twin rotary compressor
- Concealed LED display
- Condensate pump included
- Electronic expansion device
- Fresh air connection available
- Infrared remote control
- Inverter controlled compressor with DC motor
- MEPS approved for energy efficiency
- Factory charged with 2.3kg R32 refrigerant
- Standard panel model PB-950KB
Professional Installation Requirements
- Professional installation by a licensed HVAC technician is required to ensure proper setup, refrigerant handling, and compliance with safety standards.
Applications
- Commercial ceiling cassette air conditioning for offices, retail, and hospitality spaces
- Effective heating and cooling solution for medium to large commercial areas
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- AS/NZS 60335 – Safety of household and similar electrical appliances (implied for HVAC)
Environmental Benefits
- Energy-efficient DC inverter technology reduces power consumption
- R32 refrigerant with lower global warming potential
- Blue Fin anti-corrosion coating extends product lifespan reducing waste
Warranty Information
5 years parts and labour warranty.
Available Now
The Haierhome Smart Power 10.5kW Cassette R32 air conditioning system is available for immediate purchase, ideal for commercial ceiling cassette applications requiring efficient heating and cooling.
