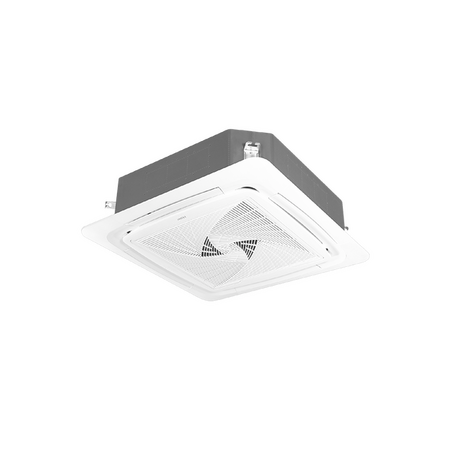

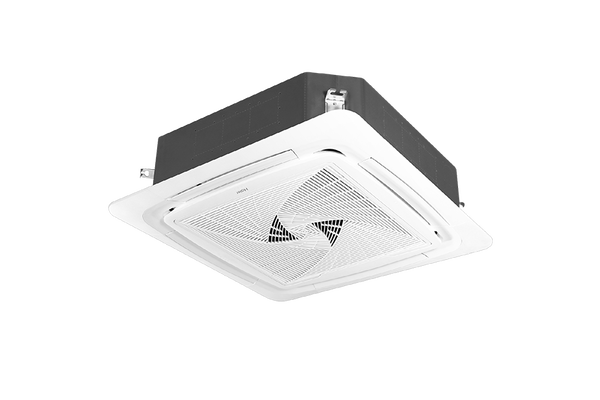

Smart Power Cassette Air Conditioner | 7.1kW Cooling | 8kW Heating | 360° Airflow by Haierhome
Experience optimal comfort with the Smart Power 7.1kW cassette air conditioner, featuring 7.1kW cooling and 8kW heating capacities. Ideal for commercial spaces, it offers 360° airflow for even distribution and energy-efficient DC inverter technology for reduced power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Smart Power Cassette Air Conditioner | 7.1kW Cooling | 8kW Heating | 360° Airflow by Haierhome
Brand: Haierhome
SKU: ABH071HS5FA-SET
Alternatively Known As: 7.1kW Cassette Air Conditioner, R32 Cassette AC, Commercial Ceiling Cassette AC, Haier Cassette Air Conditioner
Technical Specifications
- Cooling capacity: 7.1kW
- Heating capacity: 8kW
- COP: 3.81
- EER: 3.43
- HSPF-RES (Hot/Average/Cold): 4.330/3.927/3.448
- Indoor sound pressure SPL: 35-26dBA
- Outdoor sound power SWL: 64dBA
- Outdoor sound pressure SPL: 62dBA
- Working temperature cooling: -20°C to +24°C
- Working temperature heating: -15°C to +50°C
- Power supply: Single phase, 220-240V, 50Hz, 16A
- Pipe size gas: 15.9mm
- Pipe size liquid: 9.52mm
- Maximum pipe length: 50m
- Dimensions (H x L x W): 246mm x 840mm x 840mm
- Weight: 31 kg
Key Features
- 360° airflow for even air distribution
- Auto restart function
- Auto swing-up and down for adjustable airflow direction
- Blue fin coils with hydrophilic anti-corrosion coating
- Twin rotary compressor
- Concealed LED display
- Condensate pump included
- Electronic expansion device
- Fresh air connection available
- Infrared remote control
- Inverter controlled compressor with DC motor
- MEPS approved energy efficiency
- Refrigerant factory charge of 1.7kg R32
- Standard panel model PB-950KB
Professional Installation Requirements
- Professional installation by a licensed HVAC technician is required to ensure correct setup, refrigerant handling, and compliance with electrical standards.
Applications
- Commercial ceiling cassette air conditioning for offices, retail, and commercial spaces
- Effective heating and cooling solution for indoor environments
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient DC inverter technology reduces power consumption
- Use of R32 refrigerant with lower global warming potential
- Blue Fin anti-corrosion coating extends product lifespan reducing waste
Warranty Information
5 years parts and labour warranty.
Available Now
The Haierhome Smart Power 7.1kW Cassette R32 air conditioning system is available for immediate purchase, ideal for commercial ceiling cassette air conditioning applications.
