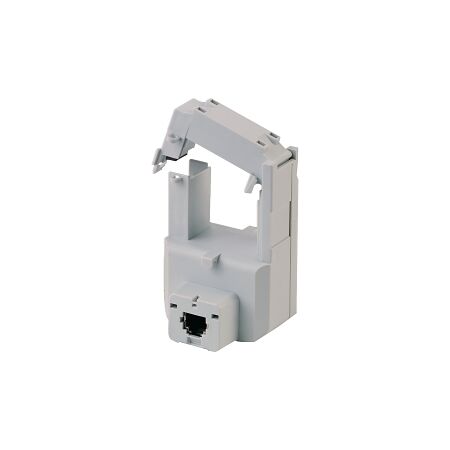

Socomec iTR-32 Smart Split Core CT 160-600A 32mm Diameter for Digiware and DIRIS A-xx

Smart Split Core CT 160-600A | 32mm Diameter | High Accuracy | Easy Installation by NHP

BRAND: NHP

SKU: 48290658

$533.60 List price: $708.50

+ −

30 Days Return Delivery Options

Smart split core current transformer with 160-600A range and 32mm diameter—ideal for industrial and commercial energy management. Built for precision, with high accuracy and easy snap mounting.

Description
Attachments

Product Name/Title: Socomec iTR-32 Smart Split Core CT 160-600A 32mm Diameter for Digiware and DIRIS A-xx

Brand: NHP

SKU: 48290658

Alternatively Known As: Smart Split Core Current Transformer, iTR-32 Current Sensor

Technical Specifications

Primary Rated Current: 600 A
Secondary Rated Current: 0.1 A
Rated Operating Frequency: 50-60 Hz
Max Operating Voltage: 300 V
Accuracy Class: 0.2S
Over Current Limiting Factor: FS 10
Secondary Rated Apparent Power: 0.1 VA
Calibrated: Yes
Current Transformer Type: Split core
Material Housing: Plastic
With Shock Protection: Yes
Snap Mounting: Yes
With Copper Rail: Yes
Secondary Connection: Plug-in connection
Number of Primary Inputs: 1
Opening Diameter: 32 mm
Storage Temperature: -25-85 °C
Dimensions (H x L x W): 32mm x 100mm x 32mm
Weight: 1.5 kg

Key Features

Split core design for easy installation without disconnecting the circuit.
Calibrated for high accuracy with an accuracy class of 0.2S.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal performance.

Applications

Industrial: Power monitoring and control systems
Commercial: Energy management solutions

Standards & Compliance

Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.

Environmental Benefits

Enhances energy efficiency by enabling precise monitoring of electrical consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Socomec iTR-32 Smart Split Core CT 160-600A is available now for immediate purchase. Ideal for industrial and commercial energy management applications.

Non-Returnable & Non-Cancellable

48290658-AU-Current-Transformer-Datasheet.pdf (48290658-AU-Current-Transformer-Datasheet.pdf, 281 Kb) [Download]
