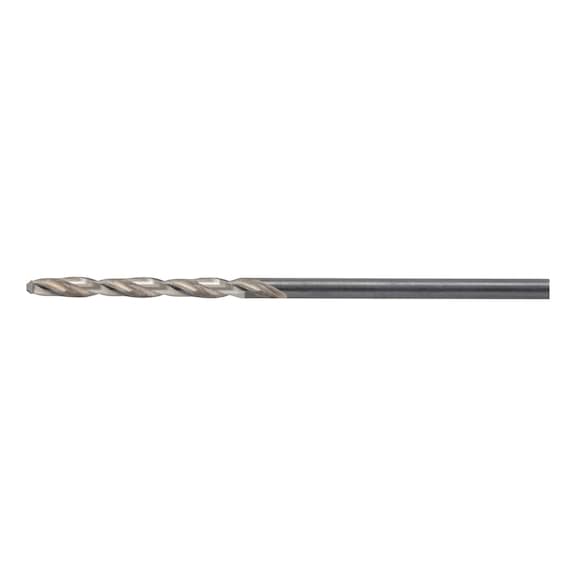

SMART STEP Drill Bit 1.0mm | HSS Twist Design | Patent-Pending Tip | by Wurth
The SMART STEP drill bit 1.0mm is engineered for precision drilling in steel, cast iron, non-ferrous metals, and wood. With a patent-pending stepped tip geometry, it offers faster drilling progress and significantly less vibration. Ideal for both professionals and DIY enthusiasts, this drill bit ensures precise, circular holes without tearing or splintering, making it perfect for a variety of applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SMART STEP Drill Bit 1.0mm | HSS Twist Design | Patent-Pending Tip | by Wurth
Brand: Wurth
SKU: 624910100
Alternatively Known As: SMART STEP drill bit, stepped drill bit, HSS twist drill, precision drill bit, Wurth drill bit
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Material to be processed: Steel, Cast iron, Non-ferrous metal, Wood, Hardwood
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 1.0 mm
- Length (l1): 34 mm
- Chip flute length (l2): 12 mm
- Shank diameter: 1 mm
- Shank style: Cylindrical
- Surface: Multiple refined
- Cutting material: HSS
- Service life rating: 3 of 4 points
- Drilling speed rating: 4 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 4 of 4 points
- Suitable for drill rating: 4 of 4 points
- Suitable for cordless drills rating: 4 of 4 points
- Suitable for upright drilling machine rating: 4 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to 1000 N/mm²
- Material sub-groups: General structural steels, Non-alloyed tempering steels, Cast iron, Ductile iron, Malleable cast iron, Magnesium alloys, Copper, Brass, Plastics thermoset and thermoplastic
- Dimensions (H x L x W): 34mm x 34mm x 1mm
- Weight: 0.1 kg
Key Features
- Patent-pending stepped drill bit tip geometry with extremely uneven pitch for faster, more comfortable drilling
- Up to 50% longer service life and up to 15% faster drilling progress
- Significantly less vibration and up to 60% less torque required
- Precise, circular holes without tearing or splintering in a wide range of materials
- 3-flat shank from 4 mm diameter prevents spinning in drill chuck and ensures optimal power transmission
- Suitable for tensile strength up to 1000 N/mm²
- Self-centring design for precise spot drilling
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drill chucks and machines by trained users.
Applications
- Suitable for drilling steel, cast iron, non-ferrous metals, wood, and hardwood
- Ideal for use with drills, cordless screwdrivers, and pedestal drilling machines
- Precise, hand-held drilling up to 20 mm diameter without pre-drilling
- Drilling out rivets and stud bolts
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
- Lower energy consumption during drilling due to efficient design
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth SMART STEP Twist Drill Bit 1.0mm is available for immediate purchase, ideal for precision drilling in metal, wood, and plastics.
