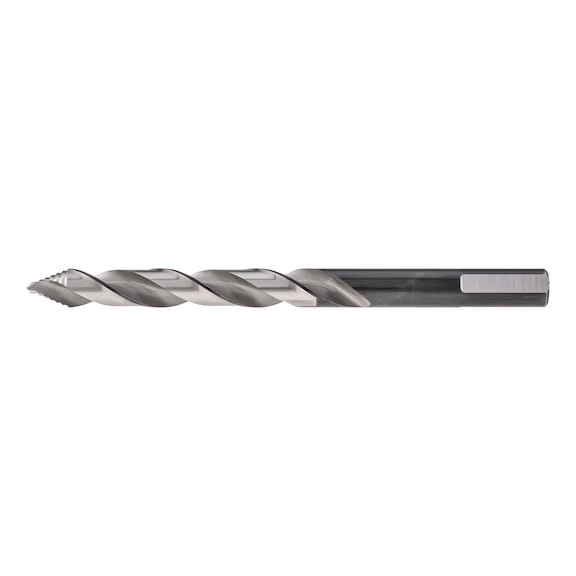

SMART STEP Drill Bit 2.2mm | HSS Material | High-Precision Design | by Wurth
The SMART STEP drill bit 2.2mm is engineered for high-precision drilling in steel, wood, and plastics. With its unique stepped tip geometry, it eliminates the need for pre-drilling and allows for precise spot drilling without running off-center. Ideal for professionals and DIY enthusiasts alike, this drill bit ensures optimal power transmission and is suitable for use with standard drills and cordless screwdrivers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SMART STEP Drill Bit 2.2mm | HSS Material | High-Precision Design | by Wurth
Brand: Wurth
SKU: 624930220
Alternatively Known As: SMART STEP drill bit, stepped drill bit, high-precision drill bit, HSS drill bit, Wurth drill bit
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Material to be processed: Steel, Cast iron, Non-ferrous metal, Wood, Hardwood
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 2.2 mm
- Length: 53 mm
- Chip flute length: 27 mm
- Shank diameter: 2.2 mm
- Shank style: Cylindrical
- Surface: Multiple refined
- Cutting material: HSS
- Type: SMART STEP
- Service life rating: 3 of 4 points
- Drilling speed rating: 4 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 4 of 4 points
- Suitable for drill rating: 4 of 4 points
- Suitable for cordless drills rating: 4 of 4 points
- Suitable for upright drilling machine rating: 4 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to: 1000 N/mm²
- Material sub-groups: General structural steels, Non-alloyed tempering steels, Cast iron, Ductile iron, Malleable cast iron, Magnesium alloys, Copper, Brass, Plastics thermoset and thermoplastic
- Dimensions (H x L x W): 53mm x 53mm x 2.2mm
- Weight: 0.1 kg
Key Features
- Original SMART STEP technology with stepped drill bit tip geometry from 2.5 mm
- Eliminates pre-drilling and enables precise spot drilling without running off-centre
- Allows angled drilling and enlarging existing drill holes
- Faster and more comfortable than conventional twist drill bits with point thinning
- No spinning in the drill chuck, optimal power transmission, and protects drill chuck from damage
- 3-flat shank from 4 mm diameter for better grip
- Packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drills and drilling machines by trained operators.
Applications
- Drilling high-precision circular holes in steel up to 1000 N/mm²
- Suitable for aluminium, plastic, non-ferrous metals, hard and soft wood
- Ideal for drilling out rivets and stud bolts
- Use with drills, cordless screwdrivers, and pedestal drilling machines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Product packaging made from 100% PCR recycled plastic from household waste
- Packaging is 100% recyclable, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
The Wurth SMART STEP High-Performance Drill Bit 2.2mm is available for immediate purchase, ideal for precision drilling in metal, wood, and plastics.
