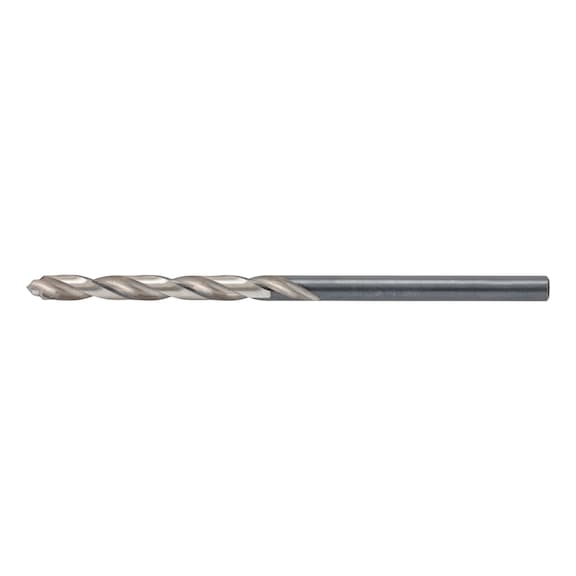

SMART STEP Drill Bit 2.5mm | HSS Material | Patent-Pending Tip Geometry | 50% Longer Service Life | by Wurth
The SMART STEP drill bit 2.5mm is engineered for precision drilling in steel, wood, and plastics. With a patent-pending stepped tip geometry, it offers faster drilling progress and significantly less vibration. Ideal for both professionals and DIY enthusiasts, this high-speed steel (HSS) bit ensures burr-free holes and is suitable for materials with tensile strength up to 1000 N/mm².
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 2.5 mm
- Length (l1): 57 mm
- Chip flute length (l2): 30 mm
- Drill tip length (l3): 1.5 mm
- Shank diameter: 2.5 mm
- Shank style: Cylindrical
- Material: High-Speed Steel (HSS)
- Surface: Multiple refined
- Standard / drilling depth: DIN 338 / 5xD
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Self-centring: Yes
- Suitable for tensile strength up to 1000 N/mm²
- Quality: ZEBRA-Premium
- Dimensions (H x L x W): 57mm x 57mm x 2.5mm
- Weight: 0.1 kg
Key Features
- Patent-pending stepped drill bit tip geometry with extremely uneven pitch for faster, comfortable drilling.
- Up to 50% longer service life and up to 15% faster drilling progress.
- Significantly less vibration and up to 60% less torque required.
- Precise spot drilling without running off-centre and burr-free hole exit.
- 3-flat shank from 4mm diameter prevents spinning in drill chuck and ensures optimal power transmission.
- Suitable for tensile strength materials up to 1000 N/mm².
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable.
Professional Installation Requirements
- No professional installation required; suitable for use with standard drill chucks and machines.
Applications
- Suitable for drilling steel, cast iron, non-ferrous metals, wood, hardwood, plastics, and acrylic.
- Ideal for use with drills, cordless screwdrivers, and pedestal drilling machines.
- Perfect for precise, circular holes, spot drilling, enlarging existing holes, and angled drilling.
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is fully recyclable.
- Lower energy consumption during drilling due to efficient design.
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth SMART STEP Twist Drill Bit 2.5mm is available for immediate purchase, ideal for precision drilling in metal, wood, and plastics.
