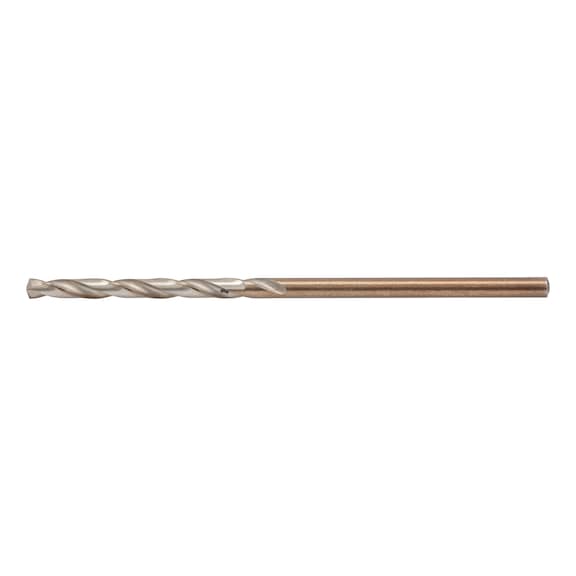

SMART STEP Drill Bit 2.5mm | Patent-Pending Tip Geometry | Oxide Finish | by Wurth
The SMART STEP drill bit 2.5mm is engineered for precision drilling in various materials, including steel, stainless steel, and wood. With a patent-pending stepped tip geometry, it offers faster drilling progress and a longer service life. Ideal for both professionals and DIY enthusiasts, this drill bit ensures burr-free holes and reduced vibration for comfortable use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 2.5 mm
- Length (l1): 57 mm
- Chip flute length (l2): 30 mm
- Drill tip length (l3): 1.5 mm
- Shank diameter: 2.5 mm
- Shank style: Cylindrical
- Surface finish: Oxide
- Cutting material: HSCo
- Suitable for tensile strength up to 1300 N/mm²
- Self-centring: Yes
- Standard / drilling depth: DIN 338 / 5xD
- Quality: ZEBRA-Premium
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Dimensions (H x L x W): 57mm x 57mm x 2.5mm
- Weight: 0.1 kg
Key Features
- Patent-pending stepped drill bit tip geometry with extremely uneven pitch for faster, more comfortable drilling
- Up to 50% longer service life and up to 15% faster drilling progress
- Significantly reduced vibration and torque for comfortable tool guidance
- Precise, circular holes without tearing or splintering, burr-free hole exit
- 3-flat shank from 4 mm diameter prevents spinning in drill chuck
- Suitable for tensile strength materials up to 1300 N/mm²
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drills and cordless screwdrivers by trained users.
Applications
- Drilling in steel, cast iron, stainless steel, titanium, non-ferrous metals, wood, and hardwood
- Suitable for use in drills, cordless screwdrivers, and pedestal drilling machines
- Ideal for precise, hand-held drilling up to 20 mm diameter without pre-drilling
- Drilling out rivets and stud bolts
- Drilling in round materials or pipes requiring high precision and centring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduced energy consumption by up to 20% during drilling
- Longer service life reduces waste and replacement frequency
- Packaging made from 100% recycled plastic and fully recyclable
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth for specific warranty details.
Available Now
The Wurth SMART STEP Twist Drill Bit 2.5mm is available for immediate purchase, ideal for precision drilling in metalworking and woodworking applications.
