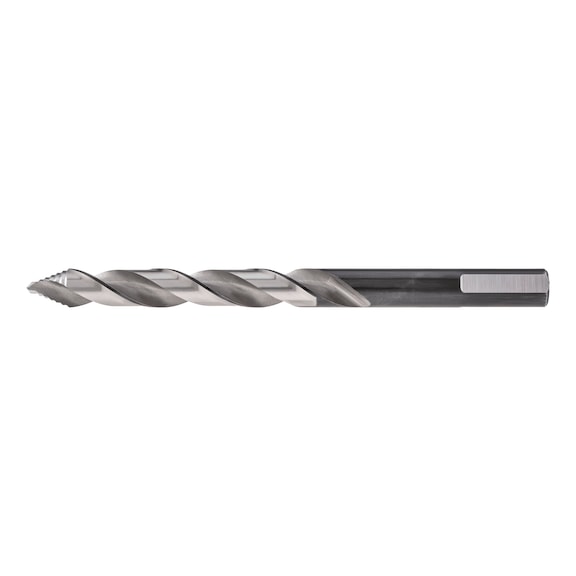

SMART STEP Drill Bit 2.7mm | High-Precision HSS | Stepped Tip Geometry | by Wurth
The SMART STEP drill bit 2.7mm is engineered for high-precision drilling in steel, aluminum, and plastics. With its unique stepped tip geometry, it eliminates the need for pre-drilling and allows for precise spot drilling without running off-center. Ideal for trained operators using standard drills, this bit ensures optimal power transmission and is perfect for drilling out rivets and stud bolts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 2.7 mm
- Length: 61 mm
- Chip flute length: 33 mm
- Drill tip length: 1.8 mm
- Shank diameter: 2.7 mm
- Shank style: Cylindrical
- Material: High-Speed Steel (HSS)
- Surface: Multiple refined
- Type: SMART STEP
- Suitable for tensile strength up to 1000 N/mm²
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Standard / drilling depth: DIN 338 / 5xD
- Self-centring: Yes
- Quality rating: ZEBRA-Premium
- Dimensions (H x L x W): 61mm x 61mm x 2.7mm
- Weight: 0.1 kg
Key Features
- Original SMART STEP technology with stepped drill bit tip geometry from 2.5 mm
- Eliminates pre-drilling and enables precise spot drilling without running off-centre
- Allows angled drilling and simple enlarging of existing holes
- Faster and more comfortable than conventional twist drill bits with point thinning
- Optimal power transmission protects the drill chuck from damage
- 3-flat shank design from 4 mm diameter for better grip
- Packaging made from 100% PCR recycled plastic and is fully recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drills and drilling machines by trained operators.
Applications
- Drilling high-precision circular holes in steel up to 1000 N/mm²
- Suitable for aluminium, plastic, non-ferrous metals, hard and soft wood
- Ideal for drilling out rivets and stud bolts
- Use with drills, cordless screwdrivers, and pedestal drilling machines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Product packaging made from 100% post-consumer recycled plastic
- Packaging is 100% recyclable, reducing environmental impact
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth SMART STEP High-Performance Drill Bit 2.7mm is available for immediate purchase, ideal for precision drilling in metal, wood, and plastics.
