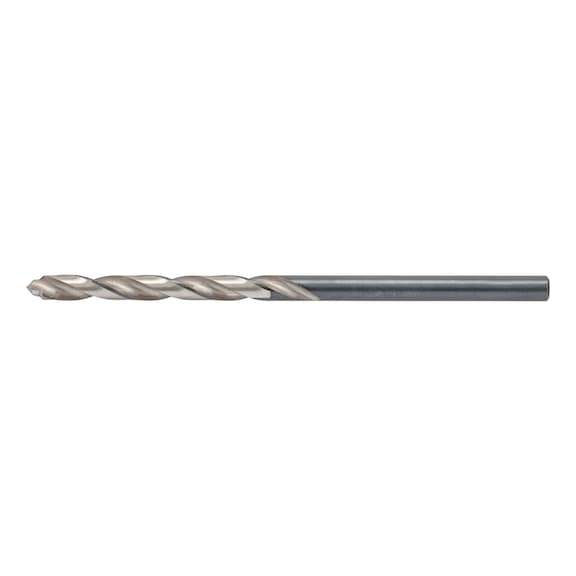

SMART STEP Drill Bit 2.8mm | HSS Material | Patent-Pending Tip Geometry | 1000 N/mm² Tensile Strength | by Wurth
The SMART STEP drill bit 2.8mm is engineered for precision drilling in various materials, including steel, wood, and plastics. With a patent-pending stepped tip geometry, it offers faster drilling progress and significantly less vibration, making it ideal for both metalworking and woodworking applications. Designed for skilled users, this high-speed steel (HSS) bit ensures burr-free hole exits and optimal power transmission.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SMART STEP Drill Bit 2.8mm | HSS Material | Patent-Pending Tip Geometry | 1000 N/mm² Tensile Strength | by Wurth
Brand: Wurth
SKU: 624910280
Alternatively Known As: SMART STEP drill bit, stepped drill bit, HSS twist drill, precision drill bit, Wurth drill bit
Technical Specifications
- Diameter: 2.8 mm
- Length: 61 mm
- Chip flute length: 33 mm
- Drill tip length: 1.8 mm
- Shank diameter: 2.8 mm
- Shank style: Cylindrical
- Material: High-Speed Steel (HSS)
- Surface: Multiple refined
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Standard / drilling depth: DIN 338 / 5xD
- Self-centring: Yes
- Suitable for tensile strength up to 1000 N/mm²
- Service life rating: 3/4 points
- Drilling speed rating: 4/4 points
- Bore hole quality rating: 4/4 points
- Versatility rating: 3/4 points
- Drilling behaviour rating: 4/4 points
- Dimensions (H x L x W): 61mm x 61mm x 2.8mm
- Weight: 0.1 kg
Key Features
- Patent-pending stepped drill bit tip geometry with extremely uneven pitch for faster, comfortable drilling
- Up to 50% longer service life and up to 15% faster drilling progress
- Significantly less vibration and up to 60% less torque required
- Precise spot drilling without running off-centre and burr-free hole exit
- 3-flat shank from 4 mm diameter prevents spinning in drill chuck and ensures optimal power transmission
- Suitable for tensile strength materials up to 1000 N/mm²
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drill chucks and machines by skilled users.
Applications
- Suitable for drilling steel, cast iron, non-ferrous metals, wood, hardwood, plastics, and acrylics
- Ideal for use in drills, cordless screwdrivers, and pedestal drilling machines
- Perfect for precise, circular holes, spot drilling, enlarging existing holes, and angled drilling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic and is fully recyclable
- Lower energy consumption during drilling due to efficient design
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth SMART STEP Twist Drill Bit 2.8mm is available for immediate purchase, ideal for precision drilling in metalworking and woodworking applications.
