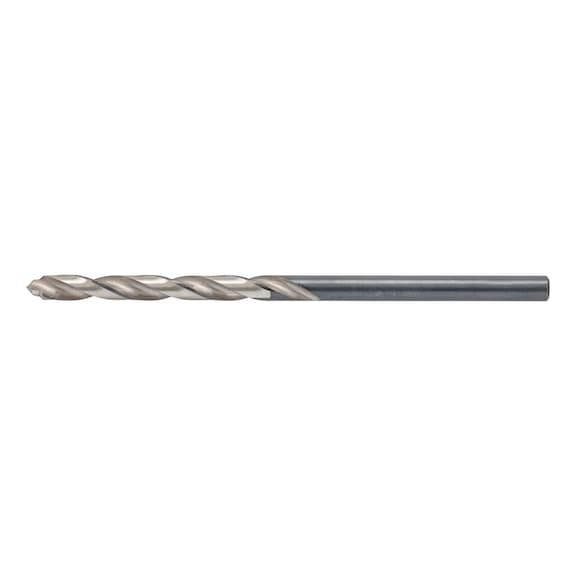

SMART STEP Drill Bit 3.0 mm | HSS Material | Patent-Pending Tip Geometry | 50% Longer Service Life | by Wurth
The SMART STEP Drill Bit 3.0 mm is engineered for precision drilling in steel, cast iron, and wood. With a patent-pending stepped tip geometry, it offers faster drilling progress and significantly less vibration. Ideal for both professionals and DIY enthusiasts, this drill bit ensures precise, circular holes without tearing, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SMART STEP Drill Bit 3.0 mm | HSS Material | Patent-Pending Tip Geometry | 50% Longer Service Life | by Wurth
Brand: Wurth
SKU: 624910300
Alternatively Known As: Stepped Drill Bit, SMART STEP Drill Bit, HSS Twist Drill, Precision Drill Bit, Uneven Pitch Drill Bit
Technical Specifications
- Diameter: 3.0 mm
- Length (l1): 61 mm
- Chip flute length (l2): 33 mm
- Drill tip length (l3): 1.8 mm
- Shank diameter: 3.0 mm
- Shank style: Cylindrical
- Material: HSS (High-Speed Steel)
- Surface: Multiple refined
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Suitable for tensile strength up to 1000 N/mm²
- Standard / drilling depth: DIN 338 / 5xD
- Self-centring: Yes
- Quality: ZEBRA-Premium
- Service life rating: 3 of 4 points
- Drilling speed rating: 4 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 4 of 4 points
- Suitable for drill rating: 4 of 4 points
- Suitable for cordless drills rating: 4 of 4 points
- Suitable for upright drilling machine rating: 4 of 4 points
- Material of sub-group: General structural steels, Non-alloyed tempering steels, Cast iron, Ductile iron, Malleable cast iron, Magnesium alloys, Copper, Brass, thermoset and thermoplastic plastics
- Dimensions (H x L x W): 61mm x 61mm x 3mm
- Weight: 0.1 kg
Key Features
- Patent-pending stepped drill bit tip geometry with extremely uneven pitch for faster, more comfortable drilling
- Up to 50% longer service life and up to 15% faster drilling progress
- Significantly less vibration and up to 60% less torque required
- Precise, circular holes without tearing or splintering in various materials
- 3-flat shank from 4 mm diameter prevents spinning in drill chuck and ensures optimal power transmission
- Suitable for hand-held drilling up to 20 mm diameter without pre-drilling
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drill chucks and machines.
Applications
- Suitable for drilling steel, cast iron, non-ferrous metals, wood, and hardwood
- Ideal for use with drills, cordless screwdrivers, and pedestal drilling machines
- Precise spot drilling, enlarging existing holes, and angled drilling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Up to 20% lower energy consumption during drilling
- Packaging made from 100% recycled plastic from household waste and fully recyclable
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth for specific warranty details.
Available Now
The Wurth SMART STEP Twist Drill Bit 3.0 mm is available for immediate purchase, ideal for machining and general drilling applications.
