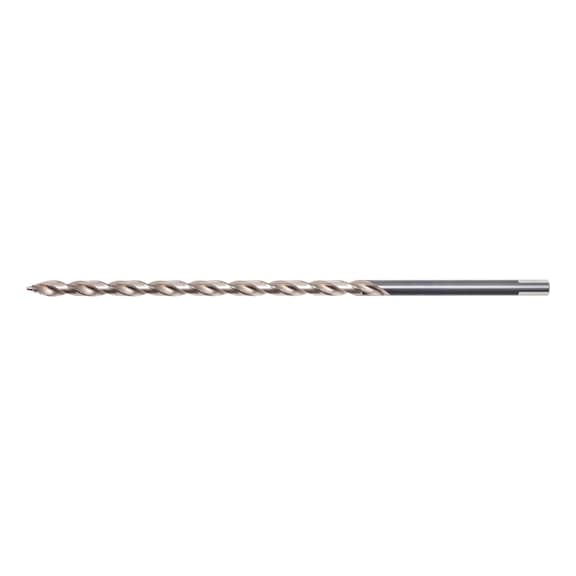

SMART STEP Extra-Long Twist Drill Bit 4.2mm | HSS Material | 3-Flat Shank Design | by Wurth
The SMART STEP Extra-Long Twist Drill Bit 4.2mm is engineered for precision drilling in steel, cast iron, and wood. With a unique stepped drill bit tip geometry, it ensures clean, circular holes without tearing or splintering, eliminating the need for pre-drilling. Designed for use with standard drilling machines and cordless screwdrivers, this drill bit offers significantly faster drilling with less effort, making it ideal for skilled users seeking efficiency and quality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SMART STEP Extra-Long Twist Drill Bit 4.2mm | HSS Material | 3-Flat Shank Design | by Wurth
Brand: Wurth
SKU: 624960420
Alternatively Known As: SMART STEP drill bit, extra-long twist drill, HSS drill bit, precision drill bit, Wurth drill bit
Technical Specifications
- Diameter: 4.2 mm
- Length (l1): 220 mm
- Chip flute length (l2): 150 mm
- Drill tip length (l3): 2.9 mm
- Shank diameter: 4.2 mm
- Shank style: 3-face shank
- Material: High-Speed Steel (HSS)
- Surface: Multiple refined
- Suitable for tensile strength up to 1000 N/mm²
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 1869 / 25xD
- Design: Overlong
- Self-centring: Yes
- Service life rating: 3 of 4 points
- Drilling speed rating: 4 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 4 of 4 points
- Suitable for drill rating: 4 of 4 points
- Suitable for cordless drills rating: 4 of 4 points
- Suitable for upright drilling machine rating: 4 of 4 points
- Dimensions (H x L x W): 220mm x 220mm x 4mm
- Weight: 0.1 kg
Key Features
- Extremely unequal pitch (EU+) for up to 50% longer service life and up to 15% faster drilling progress
- Precise, circular holes without tearing or splintering, eliminating the need for pre-drilling
- Extremely comfortable drilling with less vibration and up to 60% less torque required
- Significantly faster drilling with less effort compared to conventional extra-long HSS twist drill bits
- 3-flat shank from diameter 4 mm for no spinning in the drill chuck and optimal power transmission
- Patent-pending stepped drill bit tip geometry for unrivalled precision and service life
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling machines and cordless screwdrivers by skilled users.
Applications
- Suitable for drilling steel, cast iron, non-ferrous metals, wood, and hardwood
- Ideal for use with drills, cordless screwdrivers, and pedestal drilling machines
- Perfect for precise, circular holes in a wide range of materials including plastics and acrylics
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Product packaging made from 100% PCR recycled plastic from household waste
- Packaging is 100% recyclable, supporting waste reduction and sustainability
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
The Wurth Extra-Long SMART STEP Twist Drill Bit 4.2mm is available for immediate purchase, ideal for precision drilling in metal, wood, and plastics.
