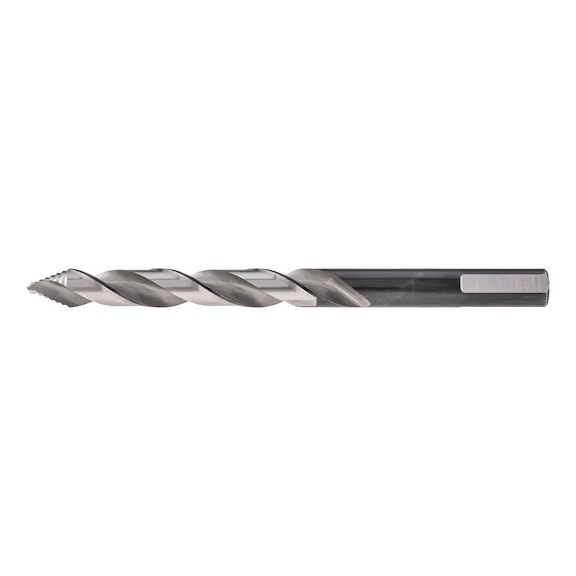

SMART STEP High-Precision Drill Bit 3.7mm | HSS Material | Stepped Tip Geometry | by Wurth
The SMART STEP High-Precision Drill Bit 3.7mm is designed for drilling high-precision circular holes in steel up to 1000 N/mm². With its original stepped drill bit tip geometry, it eliminates the need for pre-drilling and allows for precise spot drilling without running off-centre. Ideal for use with standard drills and cordless screwdrivers, this drill bit is perfect for professionals seeking efficiency and accuracy in metal, wood, and plastic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SMART STEP High-Precision Drill Bit 3.7mm | HSS Material | Stepped Tip Geometry | by Wurth
Brand: Wurth
SKU: 624930370
Alternatively Known As: SMART STEP drill bit, stepped drill bit, high-precision drill bit, HSS drill bit, Wurth drill bit
Technical Specifications
- Diameter: 3.7 mm
- Length: 70 mm
- Chip flute length: 39 mm
- Drill tip length: 2.3 mm
- Shank diameter: 3.7 mm
- Shank style: Cylindrical
- Material: High-Speed Steel (HSS)
- Surface: Multiple refined
- Type: SMART STEP
- Suitable for tensile strength up to 1000 N/mm²
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 338 / 5xD
- Self-centring: Yes
- Service life rating: 3 of 4 points
- Drilling speed rating: 4 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 3 of 4 points
- Drilling behaviour rating: 4 of 4 points
- Suitable for drill rating: 4 of 4 points
- Suitable for cordless drills rating: 4 of 4 points
- Suitable for upright drilling machine rating: 4 of 4 points
- Material of sub-group: General structural steels, non-alloyed tempering steels, cast iron, ductile iron, malleable cast iron, magnesium alloys, copper, brass, plastics thermoset and thermoplastic
- Dimensions (H x L x W): 70mm x 3.7mm x 3.7mm
- Weight: 0.1 kg
Key Features
- Original SMART STEP technology with stepped drill bit tip geometry from 2.5 mm
- Eliminates pre-drilling and enables precise spot drilling without running off-centre
- Allows angled drilling and enlarging existing drill holes
- Faster and more comfortable than conventional twist drill bits with point thinning
- No spinning in the drill chuck, optimal power transmission, and protects drill chuck from damage
- 3-flat shank from 4 mm diameter for secure grip
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drills and drilling machines by trained operators.
Applications
- Drilling high-precision circular holes in steel up to 1000 N/mm²
- Suitable for aluminium, plastic, non-ferrous metals, hard and soft wood
- Ideal for drilling out rivets and stud bolts
- Use with drills, cordless screwdrivers, and pedestal drilling machines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- 100% recyclable packaging reduces environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
The Wurth SMART STEP High-Performance Drill Bit 3.7mm is available now for immediate purchase. Ideal for precision drilling in metal, wood, and plastics.
