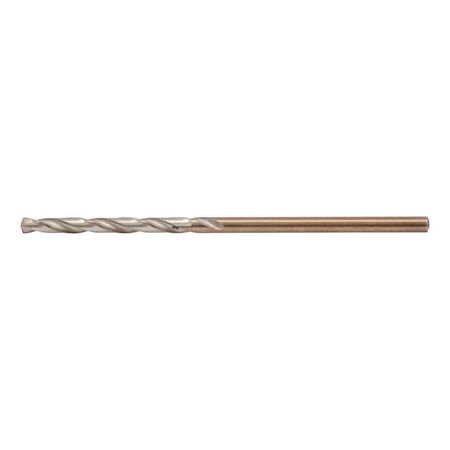

SMART STEP Twist Drill Bit 1.5mm | Patent-Pending Tip Geometry | Oxide Finish | by Wurth
The SMART STEP Twist Drill Bit 1.5mm is engineered for precision drilling in various materials including steel, stainless steel, and wood. With a patent-pending stepped tip design, it offers faster drilling speeds and a longer service life, making it ideal for both metalworking and woodworking applications. Enjoy burr-free holes and reduced vibration for a smoother drilling experience.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SMART STEP Twist Drill Bit 1.5mm | Patent-Pending Tip Geometry | Oxide Finish | by Wurth
Brand: Wurth
SKU: 626910150
Alternatively Known As: SMART STEP drill bit, stepped drill bit, HSCo twist drill, precision drill bit, uneven pitch drill bit
Technical Specifications
- Suitable for machine types: Drill, Cordless screwdrivers, Pedestal drilling machine
- Material to be processed: Steel, Cast iron, Stainless steel, Titanium, Non-ferrous metal, Wood, Hardwood
- Quality: ZEBRA-Premium
- Standard / drilling depth: DIN 338 / 5xD
- Diameter: 1.5 mm
- Length (l1): 40 mm
- Chip flute length (l2): 18 mm
- Shank diameter: 1.5 mm
- Shank style: Cylindrical
- Surface finish: Oxide
- Cutting material: HSCo
- Service life rating: 3 of 4 points
- Drilling speed rating: 4 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 4 of 4 points
- Drilling behaviour rating: 4 of 4 points
- Self-centring: Yes
- Suitable for tensile strength up to 1300 N/mm²
- Dimensions (H x L x W): 40mm x 40mm x 1.5mm
- Weight: 0.1 kg
Key Features
- Patent-pending stepped drill bit tip geometry with extremely uneven pitch for faster, more comfortable drilling
- Up to 50% longer service life and up to 15% faster drilling progress
- Significantly less vibration and up to 60% less torque required
- Precise, circular holes without tearing or splintering
- Burr-free hole exit and no rattling or catching in thin-walled materials
- 3-flat shank from diameter 4 mm prevents spinning in drill chuck
- Shank reduced to 12.7 mm diameter for compatibility with all standard 3-jaw drill chucks
- Product packaging made from 100% PCR recycled plastic and is 100% recyclable
Professional Installation Requirements
- No professional installation required; suitable for use with standard drilling machines and cordless screwdrivers by trained users.
Applications
- Suitable for drilling steel, cast iron, stainless steel, titanium, non-ferrous metals, wood, and hardwood
- Ideal for use in drills, cordless screwdrivers, and pedestal drilling machines
- Perfect for precise, hand-held drilling up to 20 mm diameter without pre-drilling
- Drilling out rivets and stud bolts
- Drilling in round materials or pipes requiring high precision and centring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduced energy consumption by up to 20% due to efficient drilling design
- Packaging made from 100% recycled plastic and fully recyclable materials
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth SMART STEP Twist Drill Bit 1.5mm is available for immediate purchase, ideal for precision drilling in metalworking and woodworking applications.
