Smart Wi-Fi Dimmer Mech | 200W LED | Voice Control | White by Brilliant Lighting

BRAND: Brilliant Lighting
SKU: 20967
$86.50 List price: $112.60
+ −
30 Days Return Delivery Options
Smart Wi-Fi dimmer with 200W LED capacity and voice control—ideal for smart home lighting. Built for seamless integration, with easy installation and remote operation via app.

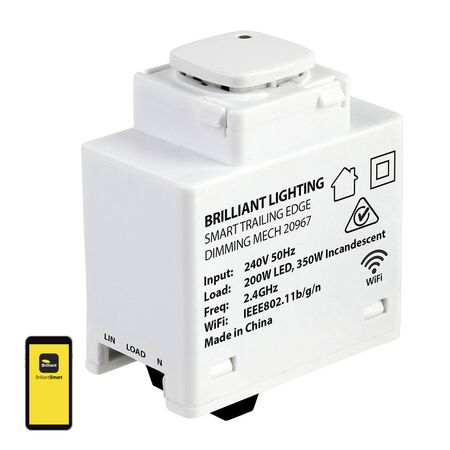

Product Name/Title: Brilliant Smart White Wi-Fi Dimmer Mech

Brand: Brilliant Lighting

SKU: 20967

Alternatively Known As: Smart Wi-Fi Dimmer, Wi-Fi Dimming Module, Smart Lighting Control

Technical Specifications
  • Minimum load: 2W or 0.33µF X2 capacitor
  • Maximum load: 200W LED / 350W incandescent
  • Operating voltage: 240V / 50Hz
  • Class: Class II (2)
  • Construction: Flame retardant ABS for housing
  • Operating temperature: 10°C - 30°C
  • Protection type: Overheat & over current
  • Control type: Push button / BrilliantSmart app
  • Wi-Fi info: EEE802.11b/g/n, 2.4GHz, Mac Encryption; WEP/WAPI/TKIP/AES
  • Dimensions (H x L x W): 50mm x 100mm x 100mm
  • Weight: 0.3 kg
Key Features
  • Seamless control of lighting with adjustable brightness and smart home integration.
  • Easy installation into existing switch plates.
  • Trailing edge dimmer suitable for most LED lighting products.
  • Remote operation via the BrilliantSmart app or voice assistants.
  • Programmable minimum brightness level to avoid light flickering.
  • Incorporates on/off switching and dimming control into one mechanism.
  • Overheat and over-current protection.
Professional Installation Requirements
  • Must be installed by a licensed electrician.
Applications
  • Connects to any dimmable downlight – indoor only.
  • Two-way switching for new installations using automations.
  • Group lights, so they can be switched on or off at the one time.
  • Create scenes using IFTTT, so lights come on based on certain behaviour, e.g., when movement is detected via a sensor.
Standards & Compliance
  • Complies with AS/NZS 60669-2-1 for lighting control devices.
Environmental Benefits
  • Energy-efficient design reduces power consumption and enhances the lifespan of lighting products.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Brilliant Smart White Wi-Fi Dimmer Mech is available now for immediate purchase. Ideal for indoor lighting control and smart home integration.

Datasheet (20967_Datasheet_41384141-92a7-4140-8e51-5190834bf12d.pdf, 559 Kb) [Download]

Instruction Manual (20967_IM_f9ca43cc-d6a2-4f98-aa8d-f21dfce6a6d9.pdf, 682 Kb) [Download]

SDOC (20967_SDoC_69f6f8ff-f75b-480a-a813-0cb12d5e7484.pdf, 441 Kb) [Download]
