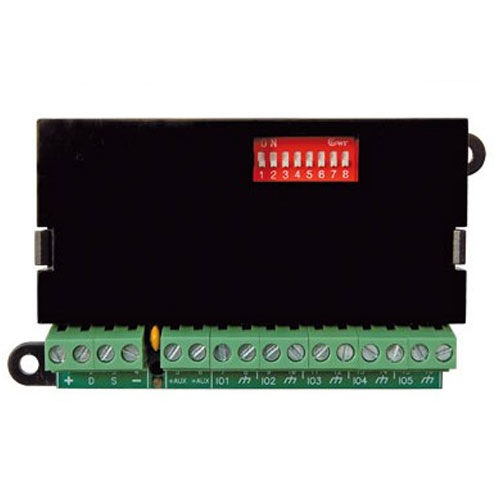

SmartLiving I/O Expander 5 Terminals I-BUS Powered Ness

BRAND: Ness
SKU: 106-408
$112.10 List price: $149.40
+ −
30 Days Return Electricians Unlock Trade Access
Ness SmartLiving I/O expander features 5 terminals, I-BUS power and tamper protection. Ideal for expanding SmartLiving alarm systems.

Alternatively Known As: Ness Flex5 Expansion Board, SmartLiving Input/Output Expansion Module, SmartLiving I-BUS Expander

Technical Specifications
  • Model: Flex5/U
  • System Compatibility: Ness SmartLiving intrusion control panels
  • Operating Voltage: 9–16 V DC
  • Typical Current Draw: 30 mA
  • Ancillary Output Capacity: 300 mA at 13.8 V
  • Terminals: 5 programmable input/output terminals
  • Input Functions: Standard, roller-blind and shock inputs on terminals T1–T4
  • Output Capacity: Terminals can sink up to 150 mA
  • Communication and Power: Four-wire I-BUS connection
  • Protection: Short-circuit and polarity-inversion protection on power terminals
  • Tamper Protection: Open-enclosure and dislodgement tamper detection
  • Audible Indicator: Built-in buzzer
  • Enclosure: Plastic enclosure with address DIP switch
  • Dimensions (H x L x W): 58mm x 18mm x 105mm
  • Weight: 0.1 kg
Key Features
  • Adds five programmable inputs or outputs to a Ness SmartLiving alarm system
  • Receives power and system commands through the I-BUS
  • Supports roller-blind and shock sensor connections on terminals T1–T4
  • Provides flexible terminal mapping for system expansion
  • Built-in buzzer for local signalling
  • Open-enclosure and dislodgement tamper protection
  • Ancillary power terminals protected against short circuit and overload
  • Supplied in a protective plastic enclosure
Professional Installation Requirements
  • Installation, wiring, addressing and programming should be performed by a suitably qualified security installer in accordance with the Ness installation manual and applicable requirements of AS/NZS 2201.1.
Applications
  • Expanding Ness SmartLiving intrusion alarm control panels
  • Adding wired alarm zones to residential security systems
  • Adding programmable outputs for sirens, indicators, relays or automation interfaces
  • Connecting shock and roller-blind sensors
  • Commercial and light-industrial intrusion alarm installations
Standards & Compliance
  • AS/NZS 2201.1:2007 – applicable to the design, installation, commissioning and maintenance of intruder alarm systems incorporating the module
Environmental Benefits
  • RoHS compliance helps limit the use of restricted hazardous substances in electronic components
  • Low-voltage I-BUS operation avoids a direct mains connection at the expansion module
  • Durable, serviceable system expansion can help reduce replacement of the complete alarm control panel
Warranty Information

Ness Corporation manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms and exclusions.

Available Now

Available through Ness Corporation and authorised Australian security-system distributors.
