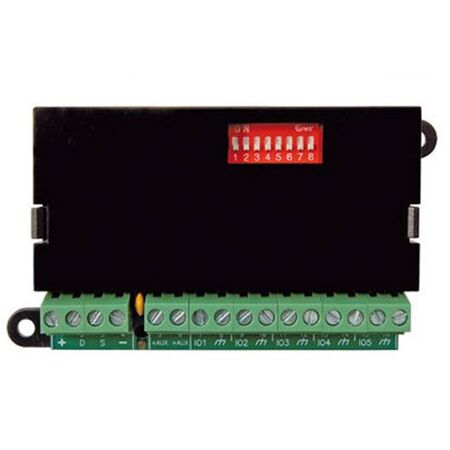

SmartLiving I O Expander 5 Terminals I-BUS Powered Tamper Protection Ness

BRAND: Ness
SKU: 106-408
$112.10 List price: $149.40
+ −
30 Days Return Electricians Unlock Trade Access
This Ness SmartLiving I/O expander adds 5 I-BUS powered terminals to a SmartLiving system, usable as either zones or outputs for security and automation applications. Each terminal handles up to 150mA and accepts shock, vibration, or roller blind sensors, with break-open and break-off tamper protection built in. Dimensions (H x L x W) are 50mm x 150mm x 100mm, and it weighs 0.5kg. Full specs and installation requirements are covered further down the page.
Technical Specifications
  • Power supply: I-BUS powered
  • Input terminals: 5 (can accept shock/vibration and roller blind sensors)
  • Output capacity: 150mA per terminal
  • Tamper protection: Break-open and break-off
  • Dimensions (H x L x W): 50mm x 150mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Increases the number of inputs or outputs available on the SmartLiving system.
  • Receives commands and power via the I-BUS.
  • Protected against short circuit and overload.
  • 5 terminals can be used as either zones or outputs.
  • Built-in signalling buzzer.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Residential: Smart home systems
  • Commercial: Security and automation systems
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Enhances the efficiency of smart home systems, reducing energy consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NESS SMARTLIVING I/O EXPANDER is available now for immediate purchase. Ideal for enhancing smart home and security systems.


FAQ

Q: How many terminals does the Ness SmartLiving I/O Expander have and what can they be used for?

A: It has 5 I-BUS powered terminals that can be configured as either zones or outputs, each supporting up to 150mA.

Q: Does this expander have tamper protection?

A: Yes, it includes break-open and break-off tamper protection, along with short circuit and overload protection.


For expanding a Challenger-based system instead, a Challengerplus replacement board with terminal blocks and resistors covers similar zone expansion needs.

Where C-Bus based input expansion is needed instead, a C-Bus auxiliary input unit 4 channel learn-enabled offers a comparable expander function.

For a broader C-Bus input board option on the same automation network, a C-Bus input board 24V from Clipsal handles additional input points.

Backed by SCHNAP's 30-day returns policy for added purchasing confidence.

Brochure Sheet (Ness_Smartliving_brochure.pdf, 1,372 Kb) [Download]

Sheet (Ness_Smartliving_Installation_Programming_Manual.pdf, 9,737 Kb) [Download]
