SmartLiving nCode Keypad Multi-Line LCD Tamper Protected Ness

BRAND: Ness
SKU: 106-405
$194.10 List price: $258.70
+ −
30 Days Return Electricians Unlock Trade Access

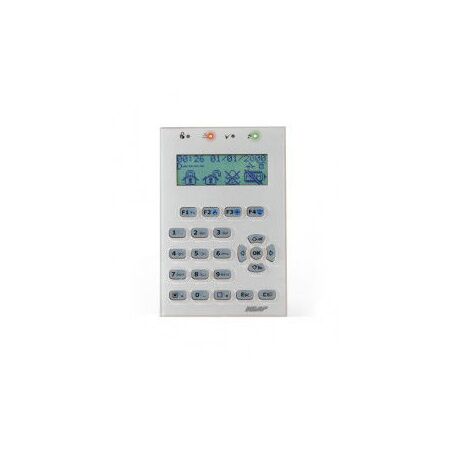

Ness SmartLiving nCode keypad features a multi-line LCD, tamper protection and 4 function keys. Ideal for SmartLiving alarm systems.

Alternatively Known As: Ness nCode/G Keypad, SmartLiving 4-Line LCD Keypad, SmartLiving Alarm Keypad

Technical Specifications
  • Display: Multi-line backlit matrix LCD with installer-customisable icons
  • Function Keys: 4 programmable keys
  • Status Indicators: 4 indicator LEDs
  • I-Bus: SmartLiving system data-bus device
  • FlexIO Terminal: 1 programmable input or output terminal
  • Operating Voltage: 9–16 V DC
  • Typical Current Draw: 70 mA
  • Maximum FlexIO Terminal Current: 150 mA
  • Tamper Protection: Front and rear tamper protection, including dislodgement detection
  • Compatibility: Ness SmartLiving control panels
  • Part Number: 106-405
  • Dimensions (H x L x W): 129mm x 16.5mm x 87mm
  • Weight: 0.135 kg
Key Features
  • Backlit multi-line LCD interface for SmartLiving alarm systems
  • Four programmable function keys for shortcuts and emergency key-duo operation
  • Four status indicator LEDs
  • Installer-customisable display icons
  • One programmable FlexIO terminal for input or output functions
  • Front and rear tamper protection
  • Slimline vertical housing for wall mounting
  • Connects to the SmartLiving I-Bus
Professional Installation Requirements
  • Installation, addressing and programming should be completed by a suitably qualified security technician in accordance with the SmartLiving installation instructions and applicable intruder-alarm requirements.
Applications
  • User control and status display for Ness SmartLiving intrusion alarm systems
  • Arming, disarming and alarm-system navigation
  • System status, fault and event display
  • Residential security installations
  • Commercial security installations
Standards & Compliance
  • Applicable to intruder alarm systems designed, installed, commissioned and maintained in accordance with AS/NZS 2201.1:2007; Ness documentation separately identifies CEI EN 50131-3:2009 certification for SmartLiving system devices.
Environmental Benefits
  • Low typical operating current of approximately 70 mA helps minimise power consumption within the alarm system
  • Durable tamper-protected construction can extend service life and reduce replacement waste
  • Electronic product recycling should be carried out through an appropriate e-waste recycling stream at end of life
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase unless otherwise specified. Faulty products may be repaired or replaced at Ness Corporation’s discretion; removal, reinstallation and transport costs are excluded. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))

Available Now

Available through Ness Corporation and authorised Australian security-system distributors, subject to current product range and distributor stock.
