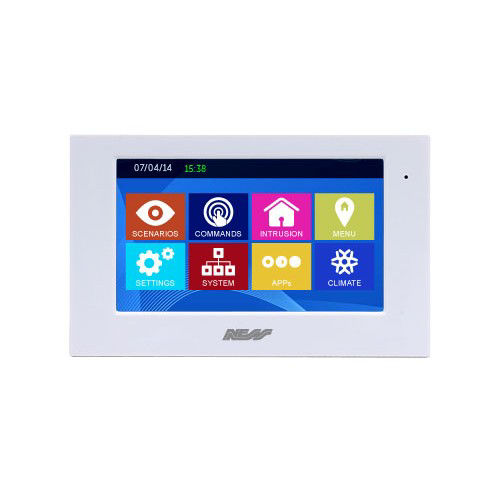

SmartLiving Touchpad 4.3 Inch Touchscreen USB and I-BUS Ness

BRAND: Ness
SKU: 106-406
$502.20 List price: $669.60
+ −
30 Days Return Electricians Unlock Trade Access
Ness SmartLiving touchpad features a 4.3 Inch touchscreen, USB and I-BUS and voice functions. Ideal for SmartLiving alarm systems.

Alternatively Known As: Ness SmartLiving Touchpad, Alien/S Touch-Screen User Interface, SmartLiving 106-406

Technical Specifications
  • Model: Alien/S
  • Part Number: 106-406
  • Display: 4.3-inch colour touchscreen
  • Display Resolution: 480 x 272 pixels
  • System Interface: Ness I-BUS
  • USB Interface: USB port for system programming and image transfer
  • Storage: SD card slot, up to 16 GB according to manufacturer product information
  • Audio: Integrated microphone and speaker for voice functions
  • Access Control: Built-in proximity reader for tags and cards
  • Temperature Monitoring: Integrated room-temperature sensor with chrono-thermostat functions
  • Protection: Tamper protection
  • Mounting: Suitable for standard backboxes
  • Casing Colours: Black or white options
  • Dimensions (H x L x W): 81mm x 17mm x 131mm
  • Weight: 0.5 kg
Key Features
  • Touchscreen interface for arming, disarming, bypassing and viewing system status
  • Compatible with Ness SmartLiving control panels
  • USB access for programming and saving images to the SD card
  • Integrated microphone and speaker for voice prompts and voice functions
  • Built-in proximity reader enables tag- or card-based access
  • Displays room temperature and supports SmartLiving chrono-thermostat functions
  • Customisable screen brightness, contrast, transparency, skins and background images
  • Supports event memory, zones, outputs and pre-programmed alarm scenarios
Professional Installation Requirements
  • Installation, I-BUS connection and programming should be performed by a suitably qualified security-system installer familiar with Ness SmartLiving systems. Any associated mains-powered control-panel work must be completed by an appropriately licensed electrical tradesperson.
Applications
  • Residential intrusion alarm systems
  • Commercial security alarm systems
  • SmartLiving alarm system user interfaces
  • Alarm arming, disarming and scenario control
  • SmartLiving temperature monitoring and chrono-thermostat control
Standards & Compliance
  • AS/NZS 2201.5:2008 is relevant to the installation and maintenance of intruder alarm systems; manufacturer-specific product conformity to this standard was not stated.
  • AS/NZS 3820 may apply as the general essential safety requirements framework for in-scope electrical equipment where no more specific product standard applies.
Environmental Benefits
  • Long-service electronic interface designed for integration with an existing SmartLiving alarm system, which can reduce replacement of complete security systems.
  • Digital USB and SD-card functions reduce reliance on printed configuration and image-storage materials.
  • Small, wall-mounted design uses less material and packaging than larger standalone control interfaces.
Warranty Information

Ness Corporation’s general warranty policy provides 3 years from the date of purchase for Ness-manufactured or supplied products, unless otherwise specified. Warranty claims are subject to the manufacturer’s terms and conditions.

Available Now

Available through Ness Corporation and authorised Australian security-system distributors, subject to current product availability.
