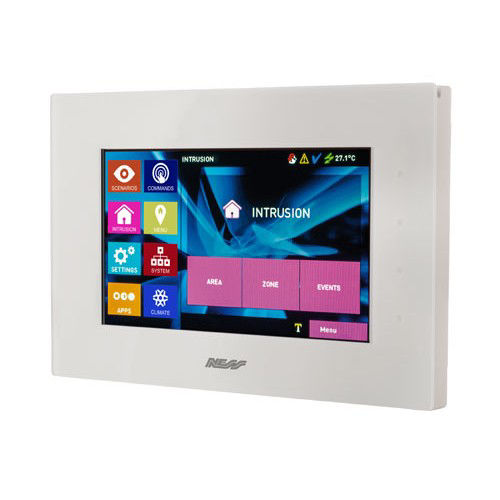

SmartLiving Touchpad 7 Inch Touchscreen USB and I-BUS Ness

BRAND: Ness
SKU: 106-407
$901.80 List price: $1,202.40
+ −
30 Days Return Electricians Unlock Trade Access
Ness SmartLiving touchpad features a 7 Inch touchscreen, USB and I-BUS connectivity and voice functions. Ideal for SmartLiving alarm systems.

Alternatively Known As: Ness Alien/G Touchscreen Keypad, SmartLiving 7-Inch Touchpad, Ness 106-407

Technical Specifications
  • Display: 7-inch colour touchscreen
  • Display Resolution: 800 x 480 pixels
  • System Interface: Ness I-BUS
  • USB Interface: USB port for system programming and image storage
  • SD Card Interface: Supports SD card storage up to 16 GB
  • Input/Output Terminals: 2 programmable I/O terminals
  • Voice Functions: Integrated microphone and speaker for voice guidance and announcements
  • Access Control: Built-in proximity reader for tags and cards
  • Temperature Functions: Integrated room-temperature sensor and chrono-thermostat functions
  • Operating Voltage: 9–15 V DC
  • Typical Current Draw: 220 mA
  • Compatibility: SmartLiving 505, 515, 1050, 1050L and 10100 control panels from version 5.0
  • Mounting: Flush-mount wall installation
  • Security Features: Removal and dislodgement tamper protection
  • Dimensions (H x L x W): 143mm x 219mm x 34mm
  • Weight: 0.52 kg
Key Features
  • Large 7-inch colour touchscreen interface
  • I-BUS connection for SmartLiving alarm systems
  • USB connectivity for programming and image storage
  • Integrated voice functions with microphone and speaker
  • Built-in proximity reader for tag and card access
  • Two programmable input/output terminals
  • Supports photo-frame display and customised backgrounds
  • Flush-mount design for a streamlined wall installation
  • Compatible with Ness SmartLiving control panels
Professional Installation Requirements
  • Installation, wiring and commissioning should be completed by a suitably qualified security installer in accordance with the SmartLiving installation instructions and applicable Australian requirements. The touchpad must be connected to a compatible SmartLiving I-BUS alarm control panel.
Applications
  • User interface for Ness SmartLiving intrusion alarm systems
  • Residential security system control
  • Commercial security system control
  • Alarm arming, disarming and status management
  • Access control using proximity tags or cards
  • SmartLiving home automation and chrono-thermostat control
Standards & Compliance
  • AS/NZS 2201.1:2007 — relevant to the design, installation, commissioning and maintenance of intruder alarm systems; product-specific certification for this touchpad is not stated by Ness.
Environmental Benefits
  • Fixed-installation design can extend service life and reduce replacement waste
  • Low-voltage I-BUS operation avoids the need for a separate high-voltage user-interface circuit
  • Ness publishes RoHS compliance documentation for its product range; confirm applicability to the specific SKU before making a formal compliance claim.
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))

Available Now

Available through Ness and authorised Australian security distributors; confirm current stock and colour variant before ordering.
