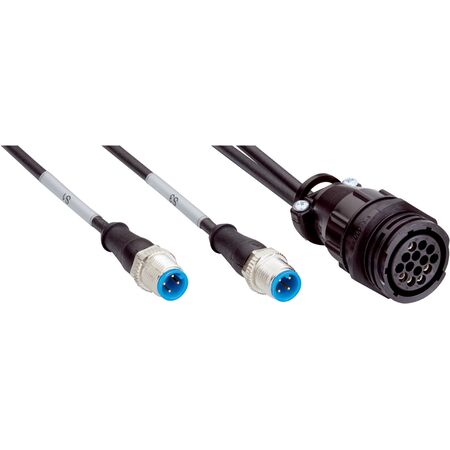

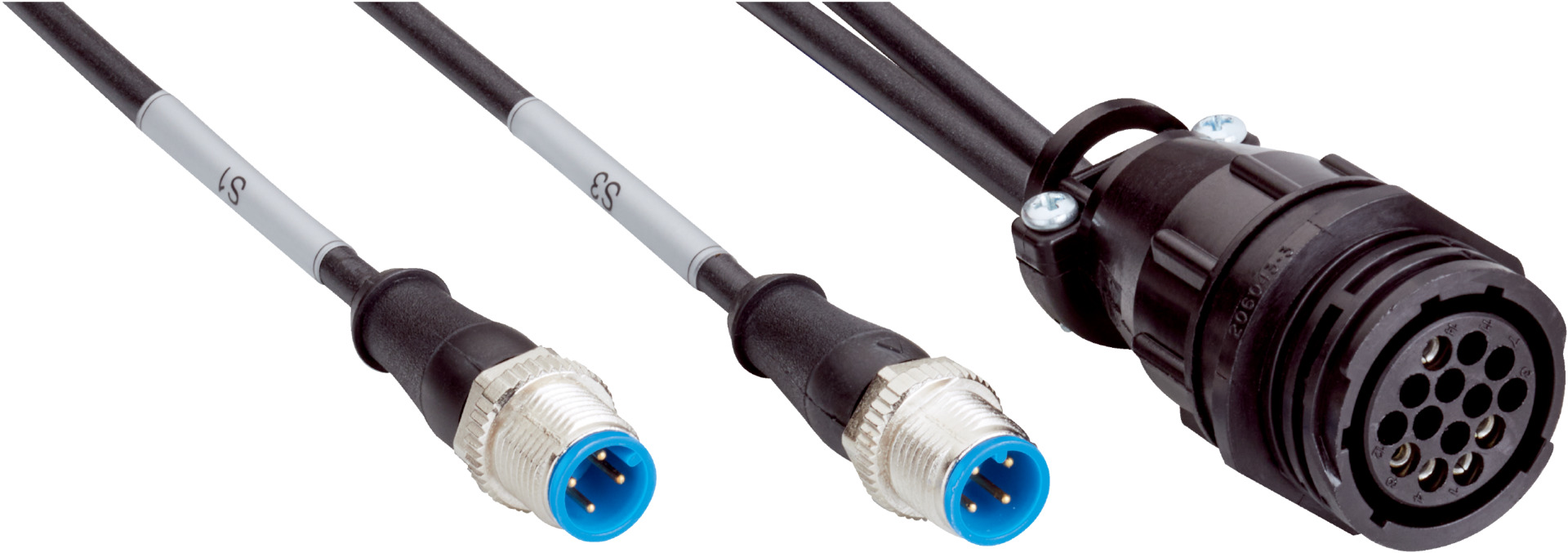

SMEMA N-1 Female Connection Cable | M12 4-Pin & SMEMA 14-Pin | 2m Length | by SICK
The SMEMA N-1 female connection cable is designed for seamless integration in industrial automation systems, featuring a durable M12 4-pin male connector and a 14-pin female SMEMA connector. With a 2m length and halogen-free PUR jacket, this cable ensures reliable digital I/O signal transmission, making it ideal for conveyor and assembly line applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, A-coded
- Connection type head B: Female connector, SMEMA CPC, 14-pin
- Locking plug connector: Screw connection
- Connector material: TPU (head A)
- Connector color: Black
- Cable length: 2 m
- Cable type: 4-wire, PUR, halogen-free
- Jacket material: PUR, halogen-free
- Jacket color: Black
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 10,000,000
- Current loading: 4 A
- Signal type: Digital I/Os
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 4-pin, A-coded on head A
- Female connector SMEMA CPC, 14-pin on head B
- Screw connection locking plug
- Cable is 2 m long, 4-wire, PUR, halogen-free
- Durable TPU connector material
- Unshielded cable with 0.34 mm² conductor cross section
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C
- Supports current loading of 4 A
- Designed for digital I/O signals
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation systems
- Conveyor and assembly line connections
- Digital I/O signal transmission
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SMEMA N-1 Female Connection Cable by SICK is available for immediate purchase, ideal for industrial automation and conveyor system applications.
