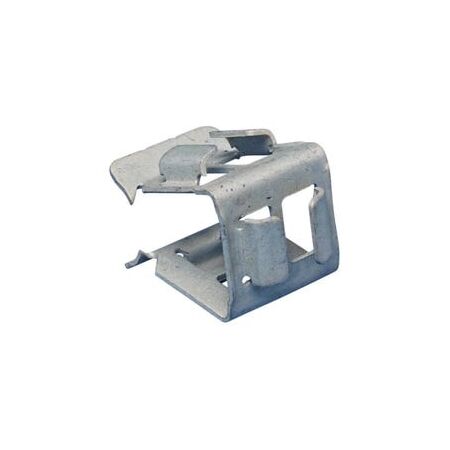

Snap Clip Adapter 13-20mm Flange Caddy

BRAND: CABAC
SKU: SCA
$1.60 List price: $2.10
+ −
30 Days Return Electricians Unlock Trade Access
Caddy snap clip adapter for 13-20mm beam flanges. Ideal for attaching cable clips and hangers to steel beams without drilling.

Alternatively Known As: nVent CADDY SCA Snap Clip Adaptor, CADDY Cable Snap Clip Adapter, CADDY Beam Flange Cable Adapter

Technical Specifications
  • Catalogue Number: SCA
  • Article Number: 160510
  • Material: Spring steel
  • Finish: nVent CADDY Armour
  • Compatible Clips: 24SC series snap clips
  • Flange Thickness: 13–20 mm
  • Clearance or Clip Interface Thickness: 2–4 mm
  • Maximum Snap Clips: 3
  • Installation Method: Hammer-on
  • Standard Packaging: 100 pieces
  • Dimensions (H x L x W): 20mm x 50mm x 35mm
  • Weight: 0.1 kg
Key Features
  • Provides a mounting point for CADDY 24SC series cable snap clips on thicker steel beam flanges
  • Supports up to three snap clips in different orientations
  • Enables parallel and perpendicular cable-routing configurations
  • Requires only a hammer for installation
  • Spring steel construction provides high gripping force and flexibility
  • nVent CADDY Armour coating provides corrosion protection for suitable indoor, non-corrosive environments
Applications
  • Supporting electrical cables on structural steel beams
  • Mounting data, communications and low-voltage cabling to steel beam flanges
  • Commercial, industrial and infrastructure cable installation
  • Cable support installations where drilling into the beam is undesirable
Standards & Compliance
  • AS/NZS 3000:2018 – relevant to the selection, support and fixing of wiring systems when the adapter is used in an electrical installation; no separate product certification was identified
Environmental Benefits
  • Spring steel is recyclable at the end of the product's service life
  • Durable coated steel construction can reduce replacement frequency and material waste
  • Hammer-on installation avoids drilling, reducing installation debris and the need for additional fixing consumables
  • RoHS-compliant nVent CADDY Armour coating is used across the CADDY spring steel product range
Warranty Information

nVent CADDY Armour products are referenced as being covered by a 10-year limited warranty, subject to the applicable nVent warranty terms, product use and installation conditions.

Available Now

Available through CADDY and authorised Australian electrical, communications and trade distributors.
