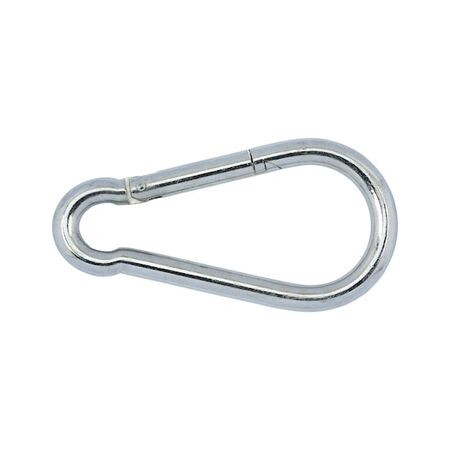

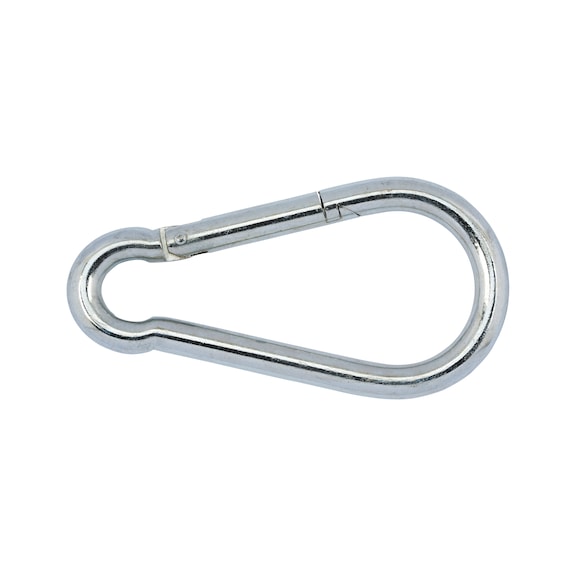

Snap Hook 524909 | Concealed Coil Spring | 250 kg Load Capacity | Zinc Plated Steel | by Wurth
The Snap Hook 524909 is designed for industrial and construction use, featuring a concealed coil spring that prevents opening under load. With a maximum load capacity of 250 kg and made from zinc plated steel for corrosion resistance, this hook is ideal for securing loads and ensuring safety in various mechanical setups. Compliant with DIN 5299 standards, it’s perfect for professionals seeking reliable fastening solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Snap Hook 524909 | Concealed Coil Spring | 250 kg Load Capacity | Zinc Plated Steel | by Wurth
Brand: Wurth
SKU: 524909
Alternatively Known As: Snap Hook, Load Securing Hook, Safety Snap Hook, Coil Spring Hook
Technical Specifications
- Length (l1): 90 mm
- Thickness (d3): 9 mm
- Internal diameter (d1): 12 mm
- Internal diameter 2 (d2): 24 mm
- Max. load capacity: 250 kg
- Material: Steel
- Surface: Zinc plated
- Form: C
- Standards: DIN 5299
- RoHS-compliant: Yes
- Dimensions (H x L x W): 90mm x 90mm x 24mm
- Weight: 0.1 kg
Key Features
- Snap hook with concealed coil spring prevents opening under load due to elastic deformation
- Max load capacity of 250 kg
- Zinc plated steel for corrosion resistance
- Complies with DIN 5299 standard
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by trained personnel familiar with load securing and safety standards to ensure proper use and safety compliance.
Applications
- Industrial and construction use for securing loads
- General fastening and rigging applications
- Safety and load securing in various mechanical setups
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant, ensuring reduced hazardous substances in manufacturing
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Snap Hook with Concealed Coil Spring 524909 is available for immediate purchase, ideal for industrial, construction, and safety load securing applications.
