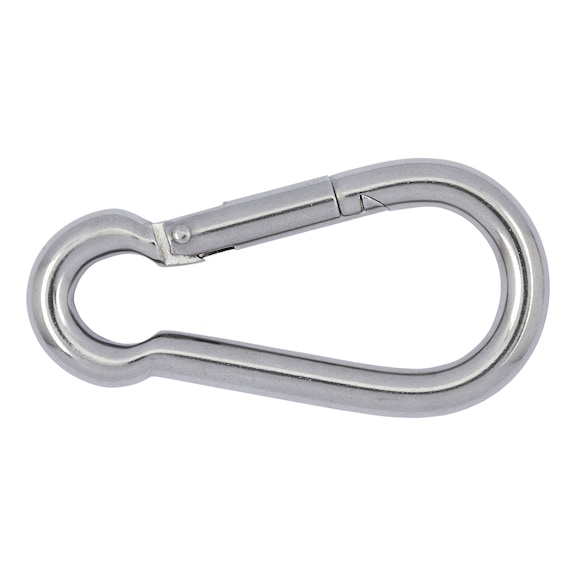

Snap Hook DIN 5299 Shape C A2 Stainless Steel | 180 kg Load Capacity | Corrosion Resistant | @Pack of 10 | by Wurth
The Snap Hook DIN 5299 Shape C A2 Stainless Steel is designed for industrial lifting and rigging, featuring a robust 180 kg load capacity and corrosion-resistant A2 stainless steel construction. Ideal for safety harnesses and outdoor applications, this pack of 10 hooks ensures reliable performance and compliance with DIN 5299 standards, making it a must-have for professionals in need of secure fastening solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Snap Hook DIN 5299 Shape C A2 Stainless Steel | 180 kg Load Capacity | Corrosion Resistant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5240707
Alternatively Known As: Snap Hook DIN 5299 C, Stainless Steel Snap Hook, Safety Snap Hook, Load Hook A2

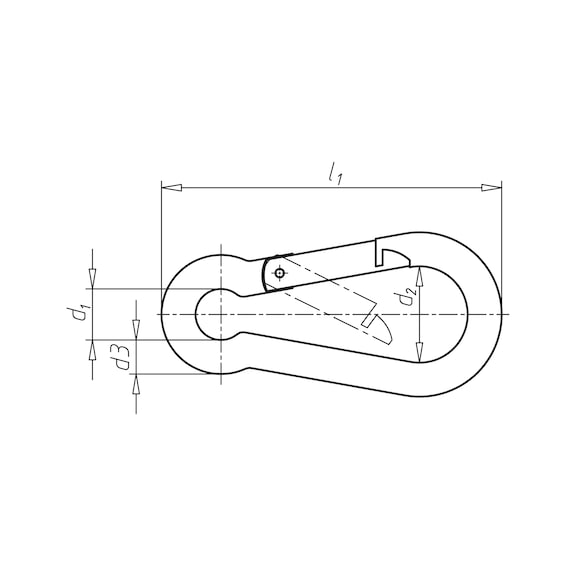

Technical Specifications
- Length (l1): 70 mm
- Thickness (d3): 7 mm
- Internal diameter (d1): 10 mm
- Internal diameter 2 (d2): 19 mm
- Max. load capacity: 180 kg
- Material: Stainless steel A2
- Surface: Plain
- Standards: DIN 5299
- Form: C
- RoHS-compliant: Yes
- Dimensions (H x L x W): 70mm x 70mm x 19mm
- Weight: 0.05 kg
Key Features
- Hook cannot be opened when loaded with specified live load capacity due to elastic deformation
- Made from stainless steel A2 for corrosion resistance
- Complies with DIN 5299 standard
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by trained personnel familiar with load capacity and safety standards to ensure proper use and safety compliance.
Applications
- Industrial lifting and rigging
- Safety harness and fall protection systems
- Outdoor and marine applications requiring corrosion resistance
- General purpose securing and fastening
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Snap Hook DIN 5299 Shape C A2 Stainless Steel 70x7mm 10 PCS is available for immediate purchase, ideal for industrial, safety, and rigging applications.
