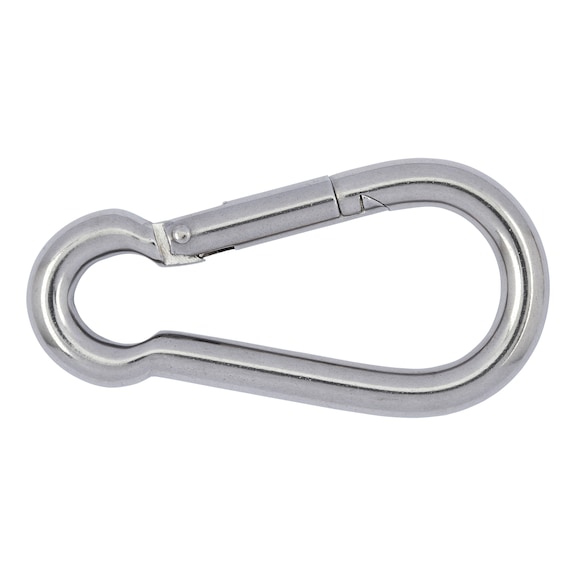

Snap Hook DIN 5299 Shape C | A2 Stainless Steel | 350 kg Load Capacity | Plain Surface Finish | @Pack of 5 | by Wurth
The Snap Hook DIN 5299 Shape C is crafted from A2 stainless steel, ensuring corrosion resistance and durability. With a maximum load capacity of 350 kg, it's perfect for industrial lifting, safety harness systems, and outdoor applications. Designed for professional use, this hook complies with DIN 5299 standards, making it a reliable choice for securing and fastening in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Snap Hook DIN 5299 Shape C | A2 Stainless Steel | 350 kg Load Capacity | Plain Surface Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 524010010
Alternatively Known As: Snap Hook Shape C, Stainless Steel Snap Hook, DIN 5299 Snap Hook, Safety Snap Hook, Load Hook
Technical Specifications
- Length (l1): 100 mm
- Thickness (d3): 10 mm
- Internal diameter (d1): 15 mm
- Internal diameter 2 (d2): 29 mm
- Max. load capacity: 350 kg
- Material: Stainless steel A2
- Surface: Plain
- Standards: DIN 5299
- Form: C
- RoHS-compliant: Yes
- Dimensions (H x L x W): 100mm x 100mm x 29mm
- Weight: 0.15 kg
Key Features
- Hook cannot be opened when loaded with specified live load capacity due to elastic deformation
- Made from stainless steel A2 for corrosion resistance
- Complies with DIN 5299 standard
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation and use should be performed by trained personnel familiar with load handling and safety standards to ensure proper use and safety compliance.
Applications
- Industrial lifting and rigging
- Safety harness and fall protection systems
- Outdoor and marine applications requiring corrosion resistance
- General purpose securing and fastening
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from stainless steel which is recyclable and durable, reducing the need for frequent replacements
- RoHS-compliant, ensuring restriction of hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Snap Hook DIN 5299 Shape C A2 Stainless Steel is available for immediate purchase, ideal for industrial, safety, and general securing applications.
