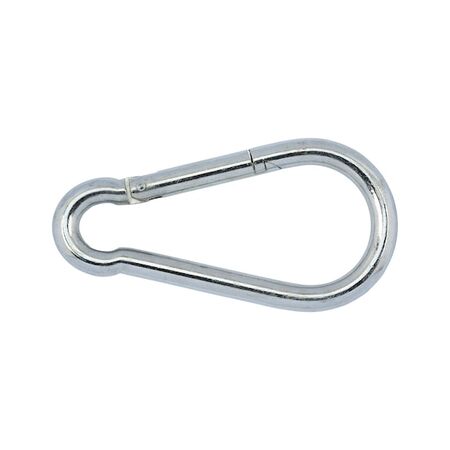

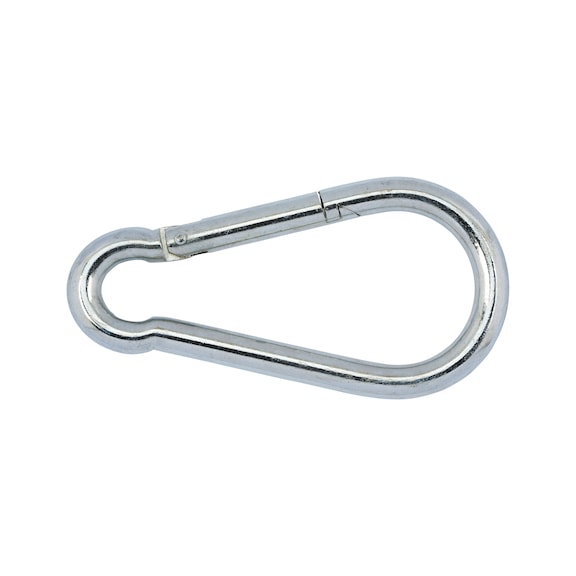

Snap Hook DIN 5299 Shape C | Zinc Plated Steel | 350 kg Load Capacity | Concealed Coil Spring | @Pack of 5 | by Wurth
The Snap Hook DIN 5299 Shape C is crafted from zinc plated steel, ensuring corrosion resistance and a robust 350 kg load capacity. Ideal for industrial lifting, safety harnesses, and outdoor equipment, this hook features a concealed coil spring for secure locking, making it perfect for reliable load securing and handling in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Snap Hook DIN 5299 Shape C | Zinc Plated Steel | 350 kg Load Capacity | Concealed Coil Spring | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 52410010
Alternatively Known As: Snap hook, Safety hook, Load hook, DIN 5299 hook, Zinc plated snap hook
Technical Specifications
- Length (l1): 100 mm
- Thickness (d3): 10 mm
- Internal diameter (d1): 15 mm
- Internal diameter 2 (d2): 29 mm
- Max. load capacity: 350 kg
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Form: C
- Standard: DIN 5299
- Dimensions (H x L x W): n/a mm x 100mm x n/a mm
- Weight: 0.15 kg
Key Features
- Snap hook with concealed coil spring for secure locking
- Hook cannot be opened when loaded with specified load capacity due to elastic deformation
- Zinc plated steel construction for corrosion resistance
- Complies with DIN 5299 standard
Professional Installation Requirements
- Professional installation or use by trained personnel is recommended to ensure safety and compliance with load capacity limits.
Applications
- Industrial lifting and rigging
- Safety harness and fall protection
- Outdoor and climbing equipment
- General load securing and handling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Snap Hook DIN 5299 Shape C Zinc Plated Steel 100x10mm 5 PCS is available for immediate purchase. Ideal for industrial, safety, and load securing applications.
