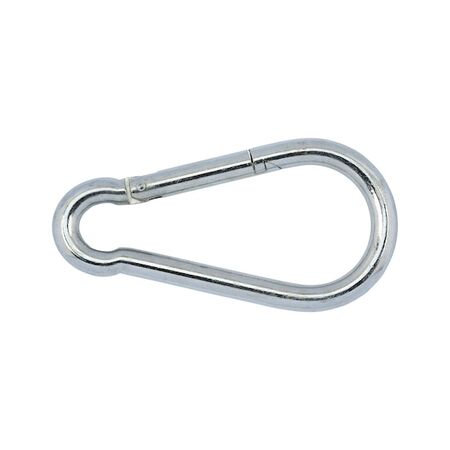

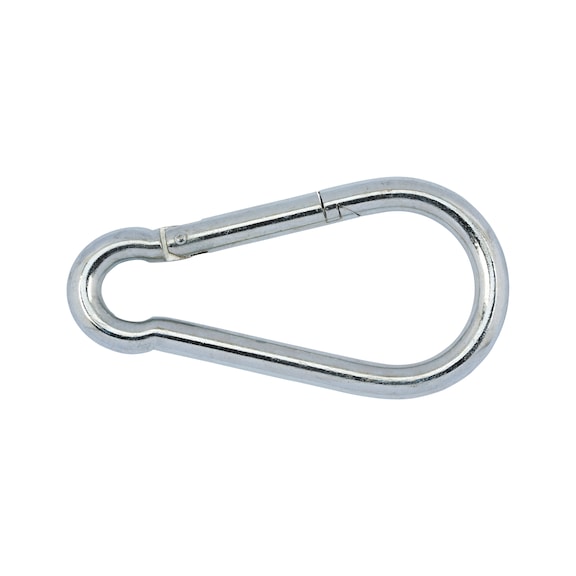

Snap Hook DIN 5299 Shape C | Zinc Plated Steel | 450 kg Load Capacity | Concealed Coil Spring | @Pack of 5 | by Wurth
The Snap Hook DIN 5299 Shape C is crafted from zinc plated steel, ensuring durability and corrosion resistance. With a maximum load capacity of 450 kg and a concealed coil spring for secure locking, this hook is perfect for industrial rigging, safety harnesses, and outdoor equipment. Ideal for trained personnel, it complies with DIN 5299 standards, making it a reliable choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Snap Hook DIN 5299 Shape C | Zinc Plated Steel | 450 kg Load Capacity | Concealed Coil Spring | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 52412011
Alternatively Known As: Snap hook, carabiner hook, safety hook, load hook, spring hook

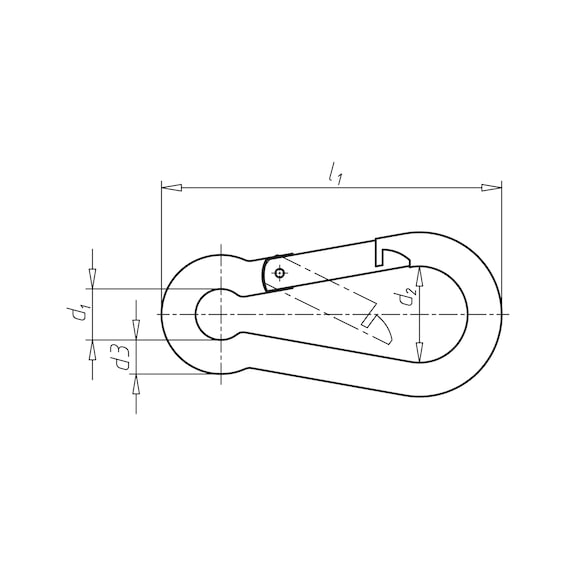

Technical Specifications
- Length: 120 mm
- Thickness: 11 mm
- Internal diameter 1: 18 mm
- Internal diameter 2: 36 mm
- Max. load capacity: 450 kg
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Standard: DIN 5299
- Form: C
- Dimensions (H x L x W): n/a mm x 120mm x n/a mm
- Weight: 0.15 kg
Key Features
- Snap hook with concealed coil spring for secure locking
- Hook cannot be opened when loaded with specified load capacity due to elastic deformation
- Zinc plated steel construction for corrosion resistance
- Complies with DIN 5299 standard
Professional Installation Requirements
- Installation and use should be performed by trained personnel following safety guidelines to ensure proper load handling.
Applications
- Industrial rigging and lifting
- Safety harness and fall protection systems
- Outdoor and climbing equipment
- General purpose securing and fastening
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable zinc plating extends product life reducing waste
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Snap Hook DIN 5299 Shape C Zinc Plated Steel 120x11mm 5 PCS is available for immediate purchase, ideal for industrial and safety applications.
