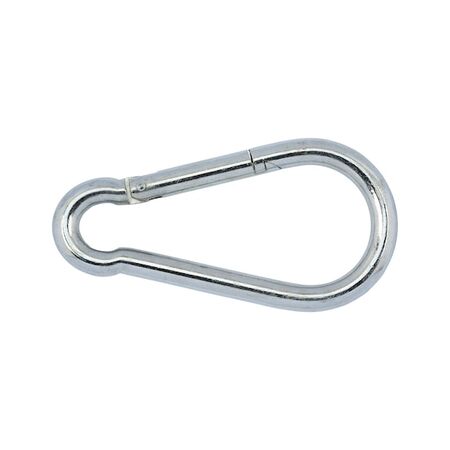

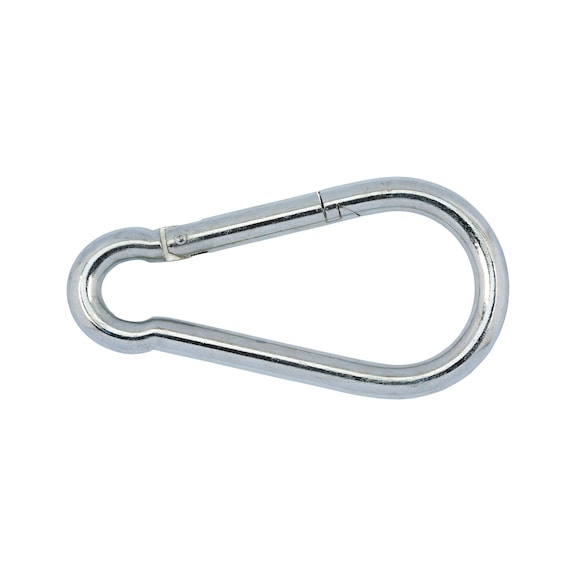

Snap Hook DIN 5299 Shape C | Zinc Plated Steel | 510 kg Load Capacity | Concealed Coil Spring | @Pack of 5 | by Wurth
The Snap Hook DIN 5299 Shape C is crafted from zinc plated steel, offering a robust load capacity of up to 510 kg, making it ideal for industrial rigging, safety harnesses, and outdoor equipment. Designed with a concealed coil spring, this hook ensures safety by preventing accidental opening under load. Perfect for professionals seeking reliable and durable fastening solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Snap Hook DIN 5299 Shape C | Zinc Plated Steel | 510 kg Load Capacity | Concealed Coil Spring | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 52414012
Alternatively Known As: Snap hook, carabiner hook, safety hook, load hook, DIN 5299 snap hook

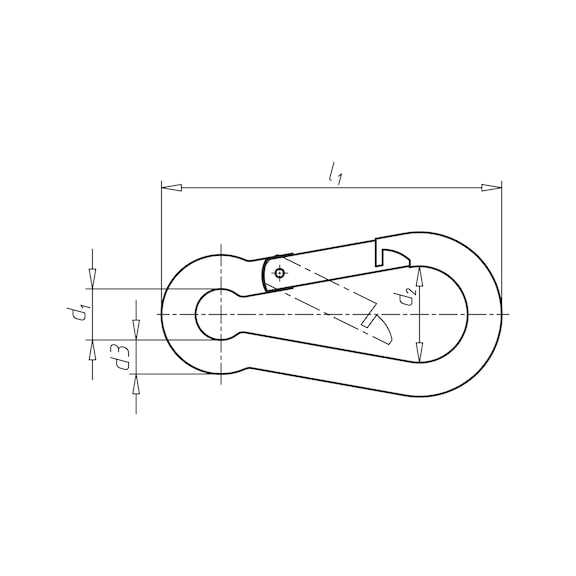

Technical Specifications
- Length (l1): 140 mm
- Thickness (d3): 12 mm
- Internal diameter (d1): 20 mm
- Internal diameter 2 (d2): 40 mm
- Max. load capacity: 510 kg
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Form: C
- Standard: DIN 5299
- Dimensions (H x L x W): 140mm x 140mm x 40mm
- Weight: 0.2 kg
Key Features
- Snap hook with concealed coil spring
- Hook cannot be opened when loaded with specified load capacity due to elastic deformation
- High load capacity of up to 510 kg
- Zinc plated steel for corrosion resistance
- Complies with DIN 5299 standard
Professional Installation Requirements
- No professional installation required; ensure proper use according to load specifications and safety guidelines.
Applications
- Industrial rigging and lifting
- Safety harness and fall protection
- Outdoor and climbing equipment
- General load securing and fastening
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable zinc plating extends product life and reduces replacement frequency
- RoHS-compliant material reduces hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Snap Hook DIN 5299 Shape C Zinc Plated Steel is available for immediate purchase, ideal for industrial, safety, and load securing applications.
