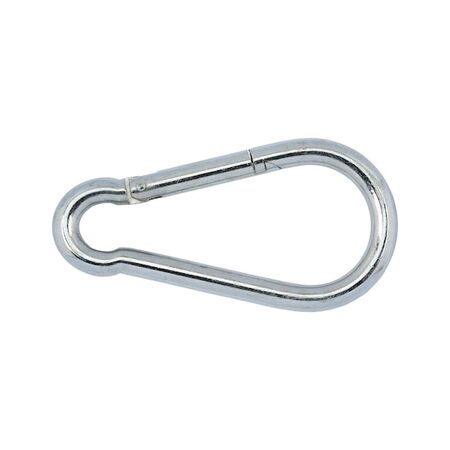

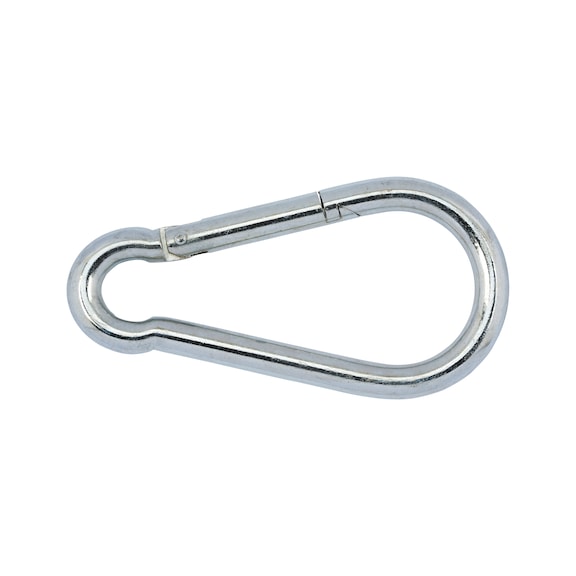

Snap Hook DIN 5299 Shape C | Zinc Plated Steel | 600 kg Load Capacity | Concealed Coil Spring | @Pack of 5 | by Wurth
The Snap Hook DIN 5299 Shape C is crafted from zinc plated steel, ensuring corrosion resistance and a high load capacity of up to 600 kg. Ideal for industrial lifting, safety harnesses, and construction equipment, this hook features a concealed coil spring for secure closure, making it perfect for reliable fastening in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Snap Hook DIN 5299 Shape C | Zinc Plated Steel | 600 kg Load Capacity | Concealed Coil Spring | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 52416013
Alternatively Known As: Snap hook, Safety hook, DIN 5299 hook, Zinc plated snap hook, Load hook
Technical Specifications
- Length: 160 mm
- Thickness: 13 mm
- Internal diameter 1: 22 mm
- Internal diameter 2: 54 mm
- Max. load capacity: 600 kg
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Standard: DIN 5299
- Form: C
- Dimensions (H x L x W): n/a mm x 160mm x n/a mm
- Weight: 0.3 kg
Key Features
- Snap hook with concealed coil spring for secure closure
- Hook cannot be opened when loaded with specified load capacity due to elastic deformation
- High load capacity of up to 600 kg
- Zinc plated steel for corrosion resistance
- Complies with DIN 5299 standard
Professional Installation Requirements
- Installation and use should be performed by trained personnel following safety guidelines to ensure proper load handling.
Applications
- Industrial lifting and rigging
- Safety harness and fall protection systems
- Outdoor and construction equipment
- General purpose securing and fastening
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Snap Hook DIN 5299 Shape C Zinc Plated Steel 160x13mm 5 PCS is available now for immediate purchase. Ideal for industrial, safety, and construction applications.
