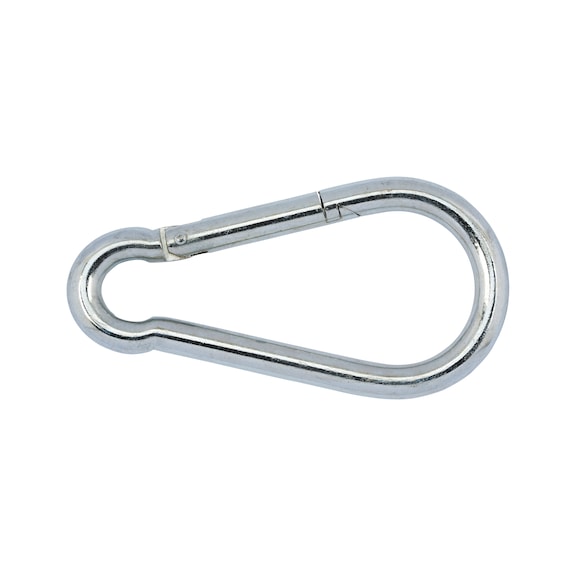

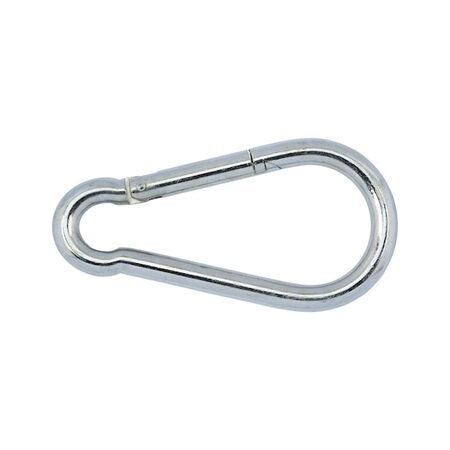

Snap Hook Safety Hook | 180 kg Load Capacity | Zinc Plated Steel | by Wurth
The Snap Hook Safety Hook is designed for industrial and construction use, featuring a high load capacity of 180 kg and a concealed coil spring that prevents accidental opening under load. Made from durable zinc plated steel, this hook is RoHS-compliant, ensuring safety and environmental responsibility in load securing and fastening applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Snap Hook Safety Hook | 180 kg Load Capacity | Zinc Plated Steel | by Wurth
Brand: Wurth
SKU: 524707
Alternatively Known As: Snap Hook, Load Hook, Safety Hook, Coil Spring Hook
Technical Specifications
- Length (l1): 70 mm
- Thickness (d3): 7 mm
- Internal diameter (d1): 10 mm
- Internal diameter 2 (d2): 19 mm
- Max. load capacity: 180 kg
- Material: Steel
- Surface: Zinc plated
- Form: C
- Standards: DIN 5299
- RoHS-compliant: Yes
- Dimensions (H x L x W): 70mm x 70mm x 19mm
- Weight: 0.1 kg
Key Features
- Snap hook with concealed coil spring prevents opening under load due to elastic deformation
- High load capacity of 180 kg
- Durable steel construction with zinc plated surface for corrosion resistance
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation should be performed by trained personnel to ensure safety and compliance with load specifications.
Applications
- Industrial and construction use for securing loads
- General fastening and rigging applications
- Safety and load securing in various mechanical setups
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Snap Hook with concealed coil spring is available for immediate purchase, ideal for industrial, construction, and safety applications.
