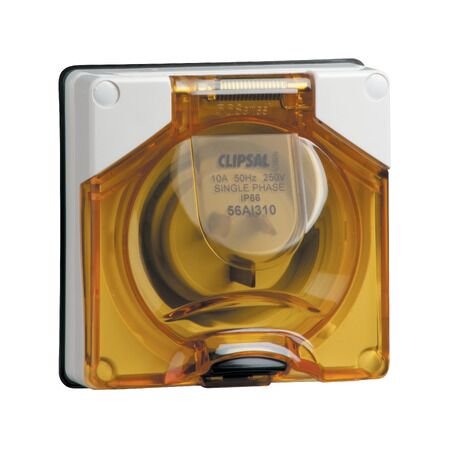

Socket Appliance Inlet IP66 | 10A 250V | Surface Mounted | Resistant Orange by Clipsal
Socket appliance inlet with IP66 rating and 10A 250V capacity—ideal for utility and small commercial applications. Built for durability, with surface mounted design and screw terminal connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Socket Appliance Inlet, Ip56 3 PIN Less Enclosure - Resistant Orange
Brand: Clipsal
SKU: 56AI310LE-RO
Alternatively Known As: Socket Appliance Inlet, Industrial Socket, Power Supply Inlet
Technical Specifications
- Rated current: 10 A
- Rated operational voltage: 250 V 50/60 Hz
- Material: Polycarbonate cover
- Ambient air temperature for operation: -25...75 °C
- Poles description: 1P + N + E
- Tightening torque: 0.8 N.m
- Dimensions (H x L x W): 107mm x 72mm x 101mm
- Weight: 0.24 kg
Key Features
- IP66 rated for superior protection against dust and water.
- Surface mounted design for easy installation.
- Screw terminal connections for 1.5-6 mm² rigid or stranded cable.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Utility industry
- Small commercial
Standards & Compliance
- Complies with AS/NZS 60320.1 for safety and performance.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Socket Appliance Inlet is available now for immediate purchase. Ideal for utility and small commercial applications.
