Socket ELCB Tester | 10-35mA Adjustable Trip | LCD Voltage Indication | Compact Design by Majortech
Socket ELCB tester with adjustable trip settings from 10mA to 35mA and LCD voltage indication—ideal for testing electrical safety in 3-wire circuits. Built for qualified electricians, it ensures accurate socket polarity and earth leakage testing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

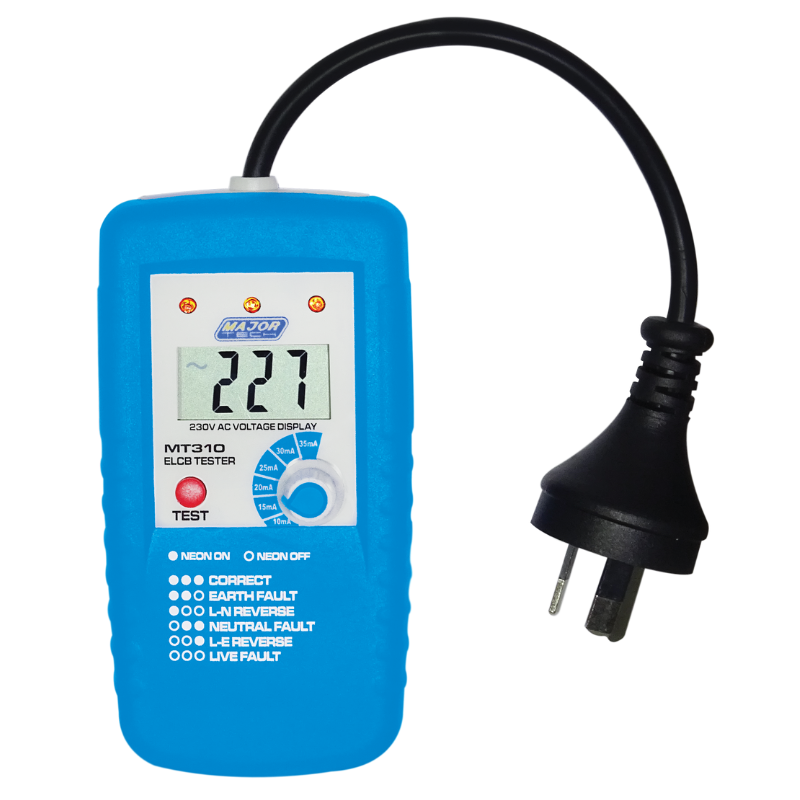

Product Name/Title: Socket ELCB Tester | 10-35mA Adjustable Trip | LCD Voltage Indication | Compact Design by Majortech
Brand: Majortech
SKU: MT310
Alternatively Known As: Earth Leakage Circuit Breaker Tester, ELCB Socket Tester, Earth Leakage Tester, Socket Polarity Tester
Technical Specifications
- Function: Test current
- Range: 10, 15, 20, 25, 30, 35mA
- Accuracy: ±1.75mA @ 230VAC
- Voltage range: 216V AC – 264V AC
- Safety rating: CAT IV 300V, CAT III 600V
- Dimensions (H x L x W): 120mm x 50mm x 80mm
- Weight: 0.3 kg
Key Features
- Compact, lightweight, and easy to use
- Tests socket, polarity, and earth leakage
- AC voltage indication on LCD display
- Milli-amp (mA) trip setting with separate test button
- Adjustable trip current from 10mA to 35mA
- Bright neon indication for wiring status confirmation
- Rated CAT IV 300V and CAT III 600V for safety
Professional Installation Requirements
- No professional installation required; designed for easy plug-in use by qualified electricians or trained personnel.
Applications
- Testing 3-wire 216V AC – 264V AC circuits
- Testing Earth Leakage Circuit Breakers (ELCBs)
- Verifying socket wiring and polarity
- Industrial and specialist electrical safety testing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps ensure electrical safety and prevent electrical faults that could lead to energy waste or hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech MT310 Socket ELCB Tester is available now for immediate purchase. Ideal for electrical safety testing in industrial and specialist applications.
