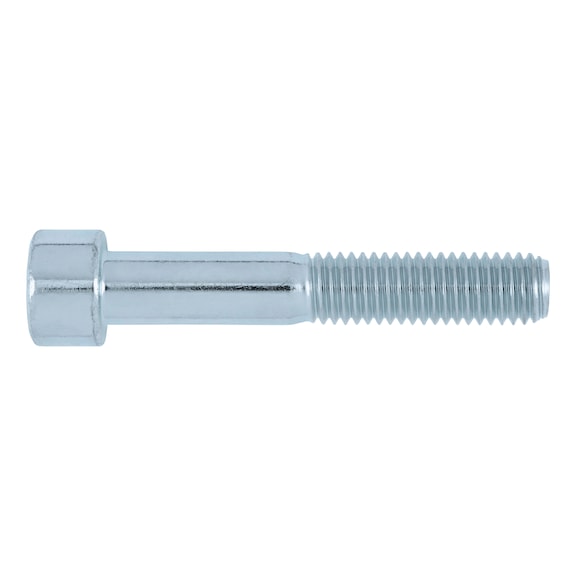

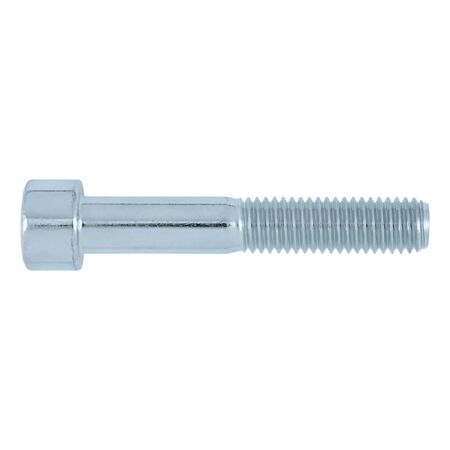

Socket Head Cap Screw M3 | Zinc Plated Steel | ISO 4762 Compliant | by Wurth
The Socket Head Cap Screw M3 is crafted from high-strength steel with a zinc plated surface, ensuring corrosion resistance and durability. Ideal for mechanical assemblies, industrial machinery, and automotive repairs, this screw complies with ISO 4762 standards and is RoHS-compliant for environmental safety. Its secure hexagon socket drive allows for reliable fastening in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Socket Head Cap Screw M3 | Zinc Plated Steel | ISO 4762 Compliant | by Wurth
Brand: Wurth
SKU: 84325
Alternatively Known As: Socket Head Cap Screw, Hex Socket Bolt, Metric Socket Head Bolt M3
Technical Specifications
- Thread type x nominal diameter (d1): M3
- Length (l1): 25 mm
- Head diameter (dk): 5.5 mm
- Head height (k1): 3 mm
- Standards: ISO 4762
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Socket head
- Drive type: Hexagon socket
- Internal drive (s1): HS2.5
- Thread type: Metric thread
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 3mm x 25mm x 5.5mm
- Weight: 0.1 kg
Key Features
- Made from high-strength steel with property class 8.8
- Zinc plated surface for corrosion resistance
- Socket head with hexagon internal drive for secure tightening
- Complies with ISO 4762 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Industrial machinery and equipment
- Automotive repairs and maintenance
- General construction and manufacturing
Standards & Compliance
- AS/NZS 4762 – Socket Head Cap Screws (aligned with ISO 4762)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M3 x 25mm Zinc Plated Steel Socket Head Bolt is available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
