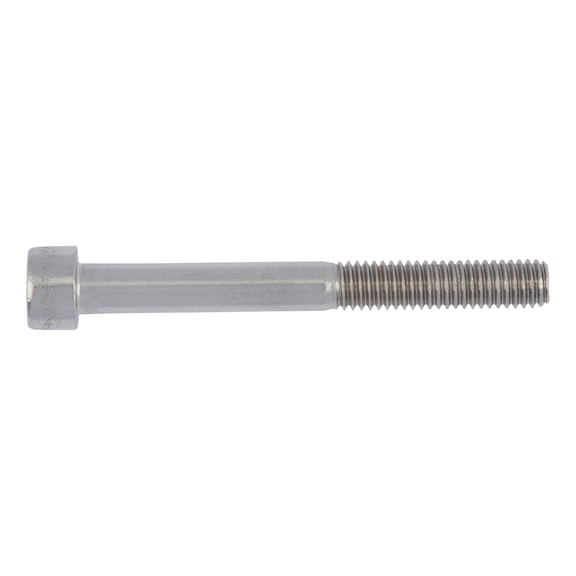

Socket Head Cap Screw M4 | A4 Stainless Steel | ISO 4762 Compliant | Hexagon Socket Drive | by Wurth
The Socket Head Cap Screw M4 is crafted from A4 stainless steel, ensuring excellent corrosion resistance and durability. With a hexagon socket drive for secure tightening, this screw is ideal for mechanical assemblies, industrial machinery, and marine applications. Compliant with ISO 4762 standards, it offers reliable strength and is RoHS-compliant, making it a perfect choice for construction and manufacturing needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Socket Head Cap Screw M4 | A4 Stainless Steel | ISO 4762 Compliant | Hexagon Socket Drive | by Wurth
Brand: Wurth
SKU: 97430
Alternatively Known As: Socket Head Cap Screw M4, Hex Socket Screw M4, Stainless Steel Hex Cap Screw M4 x 30mm
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Length (l1): 30 mm
- Head diameter (dk): 7 mm
- Head height (k1): 4 mm
- Standards: ISO 4762 / DIN 912
- Material: Stainless steel A4
- Property class: 70
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Socket head
- Drive type: Hexagon socket
- Internal drive (s1): HS3
- Thread type: Metric thread
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 4mm x 30mm x 7mm
- Weight: 0.1 kg
Key Features
- Made from A4 stainless steel for excellent corrosion resistance
- ISO 4762 / DIN 912 compliant socket head cap screw
- Metric thread with standard metric thread form
- Hexagon socket drive for secure tightening
- Property class 70 for reliable strength
- RoHS-compliant material
Professional Installation Requirements
- Installation should be performed by a qualified technician or tradesperson using appropriate tools to ensure correct torque and fastening integrity.
Applications
- Mechanical assemblies requiring corrosion-resistant fasteners
- Industrial machinery and equipment
- Marine and outdoor applications
- General fastening in construction and manufacturing
Standards & Compliance
- AS/NZS 4762 – Socket Head Cap Screws (aligned with ISO 4762)
Environmental Benefits
- Stainless steel material is recyclable and durable, reducing the need for frequent replacements
- RoHS-compliant, ensuring no hazardous substances are used
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth M4 x 30mm A4-70 stainless steel socket head cap screw is available for immediate purchase, ideal for industrial, marine, and general fastening applications.
