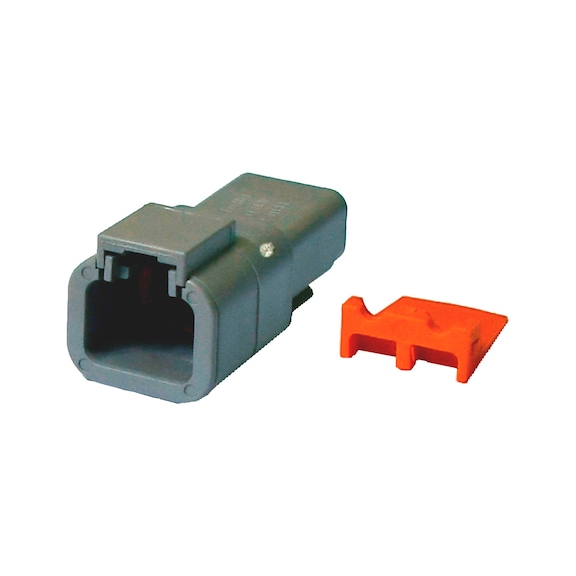

Socket Housing Deutsch DTP042P | IP67 Rated | 2-Pin Connection | 25A Capacity | by Wurth
The Socket Housing Deutsch DTP042P is designed for reliable electrical connections in harsh environments, featuring an IP67 rating and a 2-pin configuration. Built from durable thermoplastic, it supports a maximum current of 25A, making it ideal for OEM applications and industrial wiring. Ensure optimal performance with latched mating Wedgelock connections that provide secure contact alignment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Socket Housing Deutsch DTP042P | IP67 Rated | 2-Pin Connection | 25A Capacity | by Wurth
Brand: Wurth
SKU: 55520220
Alternatively Known As: Deutsch DTP Connector Housing, DTP 2-Pin Socket, DTP Electrical Connector
Technical Specifications
- Material: Thermoplastic plastic
- Number of contacts: 2
- Temperature resistance: -55 to 125 °C
- IP protection class: IP67
- Max current: 25 A
- Dimensions (H x L x W): 20mm x 40mm x 30mm
- Weight: 0.05 kg
Key Features
- Environmentally sealed connections suitable for harsh conditions
- Latched mating Wedgelock connection ensures contact alignment and retention
- Accepts size 12 contacts with 25A continuous capacity
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sealing and connection integrity.
Applications
- OEM applications requiring environmentally sealed electrical connections
- Automotive and industrial equipment wiring
- Harsh environment electrical connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Sealed design prevents ingress of dust and moisture, enhancing durability and reducing waste from failures
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Socket Housing Deutsch DTP PLGHSNG DTP042P 2-Pin 14AWG is available for immediate purchase, ideal for OEM and industrial electrical connection applications.
