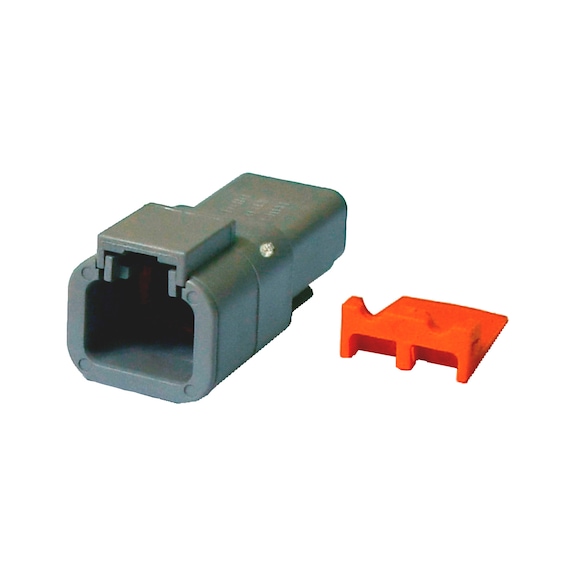

Socket Housing Deutsch DTP044P | 4-Pin Design | IP67 Rated | 25A Capacity | by Wurth
The Socket Housing Deutsch DTP044P is a robust 4-pin connector housing designed for OEM applications requiring environmentally sealed electrical connections. With an IP67 rating and a maximum current capacity of 25A, it ensures reliable performance in harsh environments. Ideal for automotive and industrial equipment wiring, this housing features latched mating Wedgelock connections for secure contact alignment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Socket Housing Deutsch DTP044P | 4-Pin Design | IP67 Rated | 25A Capacity | by Wurth
Brand: Wurth
SKU: 55520240
Alternatively Known As: Deutsch DTP Connector Housing, DTP044P Socket Housing, 4-Pin Deutsch Connector
Technical Specifications
- Material: Thermoplastic plastic
- Number of contacts: 4
- Temperature resistance: -55 to 125 °C
- IP protection class: IP67
- Max current: 25 A
- Dimensions (H x L x W): 20mm x 50mm x 40mm
- Weight: 0.05 kg
Key Features
- Environmentally sealed connections suitable for harsh environments
- Latched mating Wedgelock connection ensures contact alignment and retention
- Accepts size 12 contacts with 25A continuous capacity
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sealing and connection integrity.
Applications
- OEM applications requiring environmentally sealed electrical connections
- Automotive and industrial equipment wiring
- Harsh environment electrical connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Sealed design prevents ingress of dust and moisture, enhancing durability and reducing waste from replacements
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Socket Housing Deutsch DTP PLGHSNG DTP044P 4-Pin connector housing is available for immediate purchase, ideal for OEM and industrial electrical connection applications.
